Asus G74SX-BBK7 Screen Replacement

Geschrieben von: Ryan Lawrence
  • Kommentare: 6
Asus G74SX-BBK7 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

If you are experiencing problems with your computer's screen like cracking or dead pixels, you will likely need to replace it. With this guide, you will learn how to take apart your Asus G74SX-BBK7 for a screen replacement step-by-step.

  1. UsJNNaRPVQAkPCbX
    UsJNNaRPVQAkPCbX
    LT6w6lvmdWL2XjCy

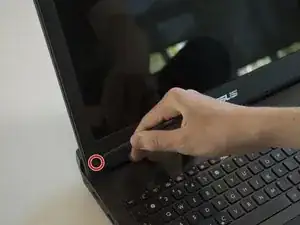

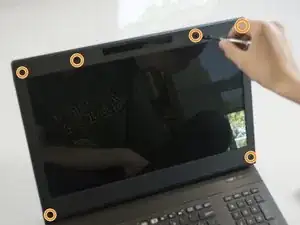

    • Begin by removing the six square rubber pads around the edge of the frame. These cover the screws to remove the outer frame. They can be taken out by hand or with a pair of tweezers.

    • The squares are attached by a light adhesive which may need to be replaced if it wears off due to constant removal

    • Next, remove the six 6mm Phillip #0 screws from the frame using a Phillips #0 screwdriver.

  2. X6n5Txyh4ZaBRjkH

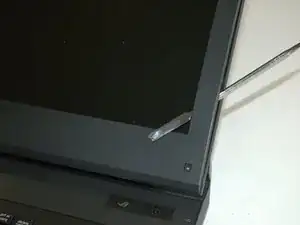

    • Use a spudger to remove the frame. It should come off easier at the top than the bottom so start at the top and work your way down.

    • Be careful when prying off frame so as not to damage the screen or the frame itself.

    potentially wrong tool, it is easy to scrape the screen with a metal tool

    Nickie Gurney -

  3. IvSAnl5TouMreURu
    IvSAnl5TouMreURu
    QyoignETARqWftTW

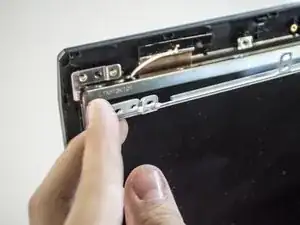

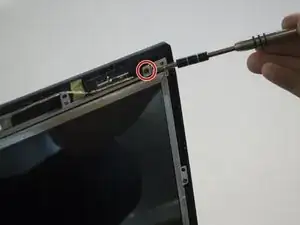

    • Remove the two 6mm Phillips #0 screws from the top left and right corners using a Phillips #0 screwdriver.

    • Gently lift the top bracket off of the screen and set it aside.

    no markup, second picture is blurry

    Nickie Gurney -

  4. JkTweFk5xENhPfdL
    JkTweFk5xENhPfdL
    UpHhdDEIGIuuZp5N
    3Ny4kaJCOoFX21WU

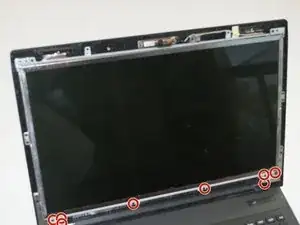

    • Repeat the last step with the bottom bracket, removing eight 6 mm Phillips #0 screws using a Phillips #0 screwdriver. Set the bracket aside.

  5. JKlIC2XxYVDc4aR5
    JKlIC2XxYVDc4aR5
    FHrT3AvTAgouJiqP
    LRtRbnbuWTlieQmy

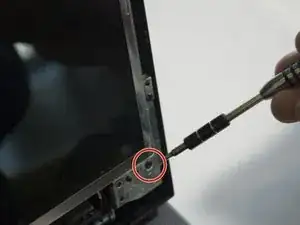

    • Remove four 6mm Phillips #0 screws from the hinges at the bottom of the screen using a Phillips #0 screwdriver.

    • The top section of the laptop will no longer be attached, so gently lay it back on the table.

  6. HlPXif1TJH4pmQFL
    HlPXif1TJH4pmQFL
    xC1yOAmJL2wev2dG

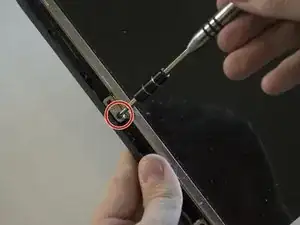

    • Remove the two 6mm Phillips #0 screws on either side of the screen using a Phillips #0 screwdriver.

    not an action shot

    Nickie Gurney -

  7. VcnWeavqefDYhNYl
    VcnWeavqefDYhNYl
    eDU3hQPiEHj2y4P3

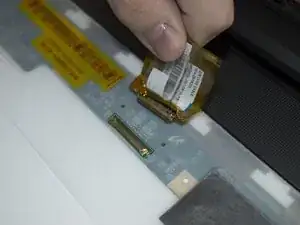

    • Remove the screen from the laptop casing and flip it over. Peel the sticker above the connector back and firmly pull the connector out.

    not an action shot, no markups

    Nickie Gurney -

  8. llorVsEuAXpHFufS
    llorVsEuAXpHFufS
    JBklDl6L61RZKMNj

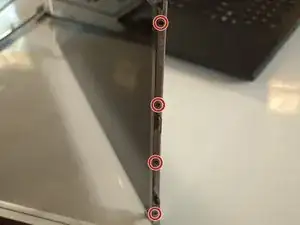

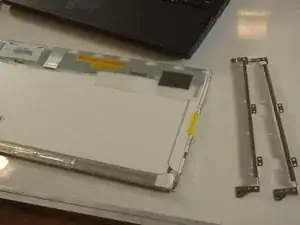

    • The last step is to remove eight 3mm Phillip #0 screws from both side brackets of the screen itself using a Phillips #0 screwdriver. There are four screws on each side.

    not action shots

    Nickie Gurney -

Abschluss

To reassemble your device, follow these instructions in reverse order.
