Asus G74SX-BBK7 Trackpad Button Replacement

Geschrieben von: Ryan Lawrence

Kommentare: 7

Asus G74SX-BBK7 Trackpad Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 20 Minuten

Einleitung

The mouse button, located under the trackpad, includes a left and right side and is used for clicking on a computer. It can be extremely inconvenient to not have. This guide will teach you replace your mouse button.

Werkzeuge

Schritt 1

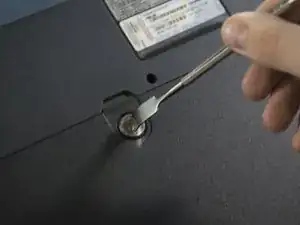

Using a flathead screwdriver, spudger, or large coin such as a quarter, remove the 13mm screw on the bottom of the laptop.
Take off the back panel.

Schritt 2

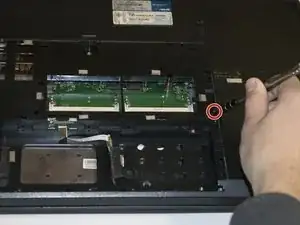

Now, unscrew and remove the 6mm Phillips #0 screw next to the optical drive.

redundant pictures

Nickie Gurney - 26/05/15

Schritt 3

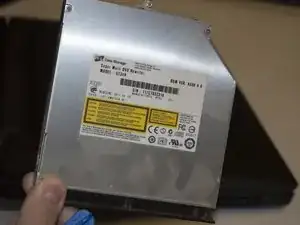

Lastly, use a plastic opening tool to remove the optical drive from its slot.

Schritt 4

Remove the two 6mm Phillips #0 screws that were previously covered by the optical drive using a Phillips #0 screwdriver.

Schritt 5

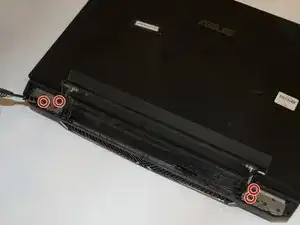

First, remove the five 10mm Phillips #0 screws from the back of the computer near the top.

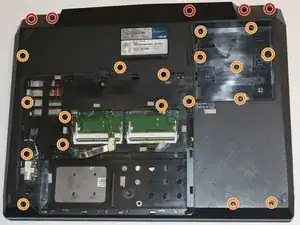

Remove all eighteen 6mm Phillips #0 screws from the bottom of the computer.
Some of the screws are set very deeply in the back case - you will need a long and narrow screwdriver to remove them.

not an action shot

Nickie Gurney - 26/05/15

Schritt 6

Next, pry open back plastic cover using a metal spudger.
Unscrew the four 10mm Phillips #0 screws under the cover.

This is not the G74SX, there is no back panel by the vents, it is a solid plastic bottom piece. Please edit the title of your guide to reflect the correct model.

Matt Law - 16/07/17

Schritt 7

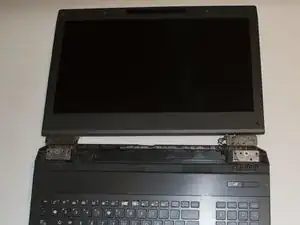

Lay laptop opened and completely flat.

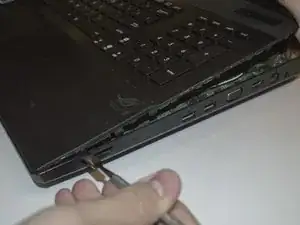

Using the metal spudger, slowly pry open the front main panel by going around each side.
Lift the top panel out, pulling the cable strips out of their sockets. These will be reattached later.
Be careful when lifting the top panel. There are cable strips attached to the motherboard that need to be removed.

not and action shot, shadow shot, and then another still frame

Nickie Gurney - 26/05/15

Schritt 8

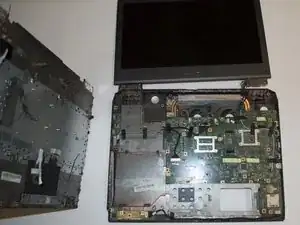

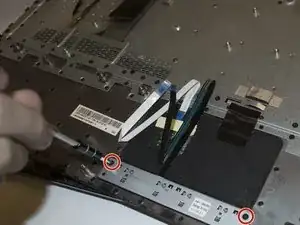

After separating the main panel and the motherboard, unscrew two 6mm Phillips #0 screws.
Remove the mouse button.

not action shot

Nickie Gurney - 26/05/15

Schritt 9

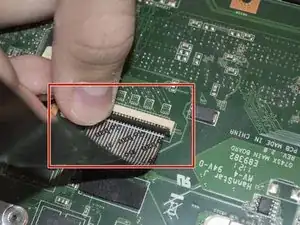

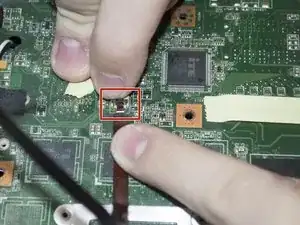

To reconnect the motherboard and main panel, insert strips back to their corresponding location.
To do this, first remove the tape and open up the tab. Plug in the strip and and close the tab.
It may be helpful to have someone help you hold the main panel while you reconnect the strips.
