Every laptop, no matter the brand, has a keyboard so that users can easily communicate with their device. Typing allows users to explore system settings, write up documents and communicate with friends and family. In this guide, we hope to help users improve their keyboard connection so that they can continue typing away.

Werkzeuge

  1. ZOfRJNFZXyVDAwON
    ZOfRJNFZXyVDAwON
    fLyMqRVojhXPSCWg
    pJmQSfYf1NlBiXDm

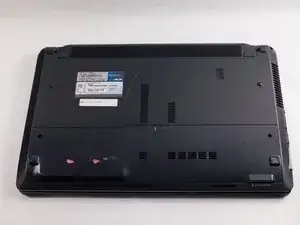

    • Place your laptop face down in front of you.

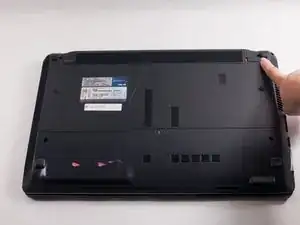

    • Slide the button in the top right corner to the right so that the orange marker is showing.

    • Press the spring loaded latch to release the battery from the computer.

  2. nPnejONqDPTFRIqm
    nPnejONqDPTFRIqm
    ErMdWZNV1JaPA25j
    3CYQfA4uXwnhcPFt

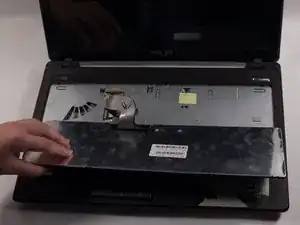

    • There is a ribbon connector underneath the keyboard. When lifting up the keyboard be gentle and carefully it up.

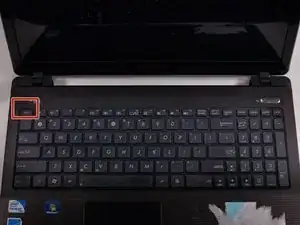

    • Insert the spudger into the indent near the "ESC" key.

    • Firmly wiggle the spudger across the keyboard in between the space until you can remove the keyboard.

  3. dGBWZQMsRfOsGGac

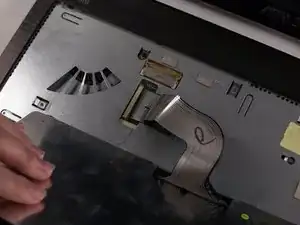

    • Gently pull the ribbon cable to the right and out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
