Einleitung

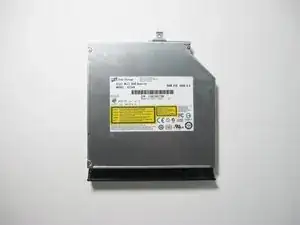

Over time, your laptop's optical drive may fail to read discs due as a result of being used excessively. You will be able to replace your failing optical drive with the help of a Phillips #0 screwdriver and a prying tool.
Werkzeuge
-
-

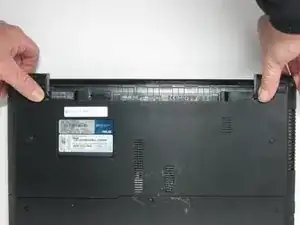

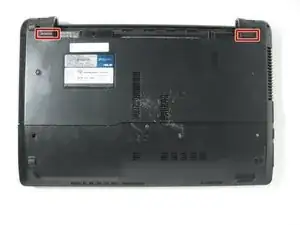

Push the two locking mechanisms at the top of your laptop away from each other.
-

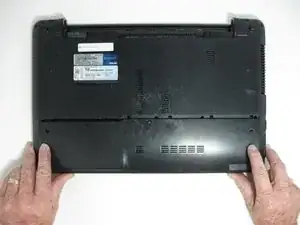

Pull the battery away from your laptop using your hands.
-
-
-

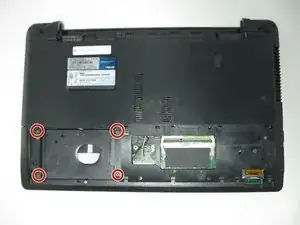

Use your Phillips #0 screwdriver to remove the four 7.0 mm Phillips #0 screws surrounding the hard drive.
-
Use your hands to slowly pull the hard drive out of your laptop.
-
-
-

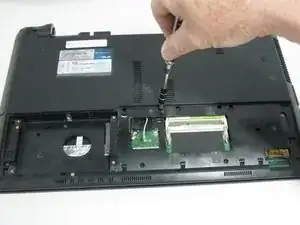

Using your Phillips #0 screwdriver, remove the following seventeen screws from your laptop:
-
Sixteen black 7.0 mm Phillips #0 screws
-
One silver 4.0 mm Phillips #0 screw
-
-
-
Flip the laptop over and open the lid to reveal the keyboard.
-

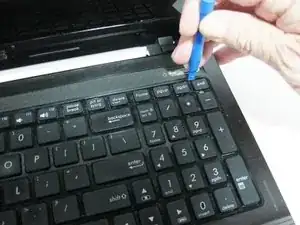

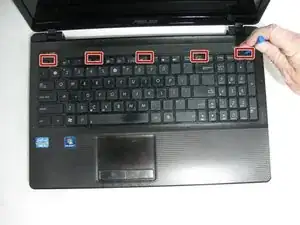

Insert the blue prying tool into each of the five tabs located at the top of the keyboard, pulling upwards on the keyboard to separate it from the palm rest.
-

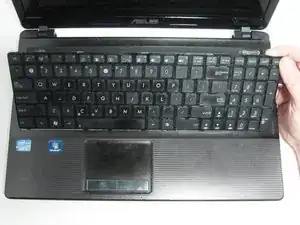

Once the top of the keyboard has been separated from the device, slowly begin pulling the keyboard away from the laptop using your hands.
-
-
-

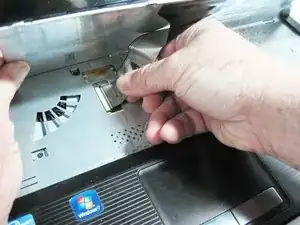

Using your fingers, gently disconnect the silver ribbon cable from the laptop by pulling the cable out of the slot and to the right.
-
-
-

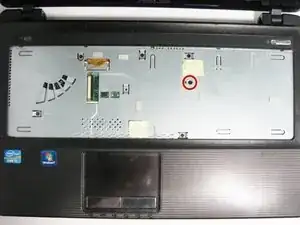

Remove the single silver 6.0 mm Phillips #0 screw that connects the optical drive to the palm rest.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Most of these steps are unnecessary to get to the dvd-drive. The keyboard clicks loose without removing these screws too, so only steps 7, 8 and 9 are needed.
