If your screen begins to flicker, is broken, or cracked you can use this guide to remove and replace the screen in order to look as good as new.

  1. pTbQXmc4oTlULhrO
    • Flip the laptop over, such that the bottom of the laptop is facing upwards.

    • Ensure that the laptop is powered off prior to following this guide.

  2. hGNhmBFEo2JLVar2
    hGNhmBFEo2JLVar2
    BFCFY2KX1DauEWHG
    • Pull the latch to the right of the battery to the right.

  3. iNUrxx5wlrCN3d4R
    iNUrxx5wlrCN3d4R
    IDNdQ4M6K4l2vAaE
    • Pull the latch to the left of the battery to the left. Hold the latch open with a finger to prevent it from closing.

  4. T2GeXvKYbxqTXHfW
    T2GeXvKYbxqTXHfW
    lDDvGcJXMXGlyZgV
    • While holding the second latch from the previous step, use another hand to reach underneath the battery.

    • Pull the battery upwards and away from the laptop to remove it.

  5. KXX1cZOEFQlkQvLZ
    • Insert a card between the outer plate cover and the back plate.

    • There may be some clips that break.

  6. IoSjFEyux6HIIEOD
    IoSjFEyux6HIIEOD
    j3f2IpvGMG4px2Mk
    RVPsYHC3cEPIR4Bn

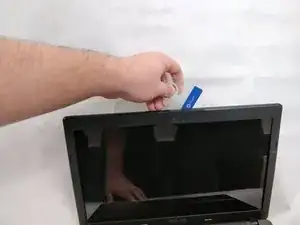

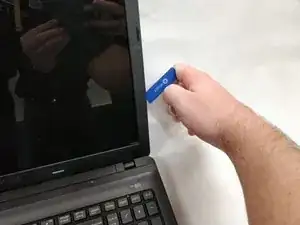

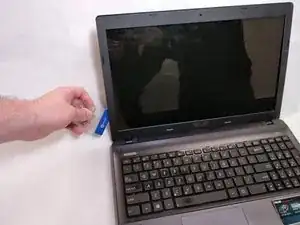

    • Using the card that has been inserted in the top of the screen follow the edge of the screen all the way down to each corner touching the keyboard.

    • Some of the clips may break.

    • If the cover is not being held by just the bottom, go around the screen again to ensure all of the clips have been popped.

  7. lVbhZTdD2WPPeoTZ
    lVbhZTdD2WPPeoTZ
    yRfqYdguYij4kYXP
    wypqYQ6XAKrLeUKV

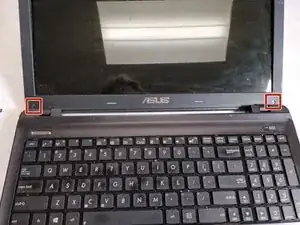

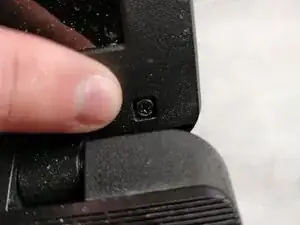

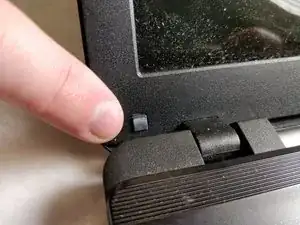

    • Remove the plugs at the bottom corners to expose the screws beneath.

  8. 1CRc6KEGAmxMo2Tb
    1CRc6KEGAmxMo2Tb
    jdW5N1W2g6oLLcBj

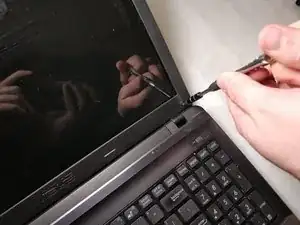

    • Using a JIS #00 screwdriver, remove the two 5 mm screws that were exposed by the bumpers being removed.

  9. tTSHNTDr3HnuB6IT
    tTSHNTDr3HnuB6IT
    t4kVwa2XCl5tEZQL
    FO3wZrbcJXXVY1E2

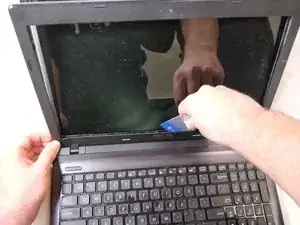

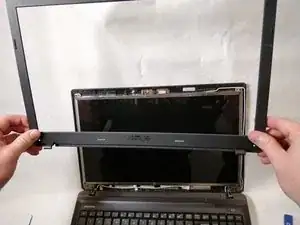

    • Using the card to loosen the remaining clasps inside the screen cover, remove the cover from the back plate and screen.

    • If the cover does not come off of the screen and back plate easily, the cover may be stuck to the hinge. (This is usually due to dirt or grime)

  10. mKylEC6FgVCXEVUU
    mKylEC6FgVCXEVUU
    WCBxSMCowQliPssO
    2wRNMw2EhQnjgGgk

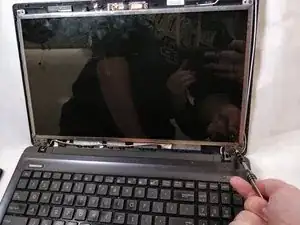

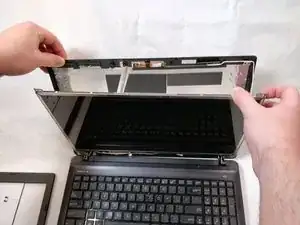

    • Using a JIS #00 screwdriver, remove the six 5 mm screws from the back plate to screen connections in each of the 4 corners of the screen.

  11. weNSfvqpVeYUXetE
    weNSfvqpVeYUXetE
    UJVDEB5LZgBCL1tL

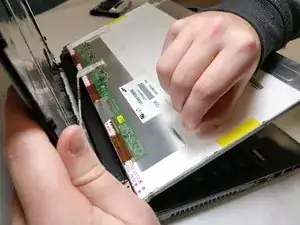

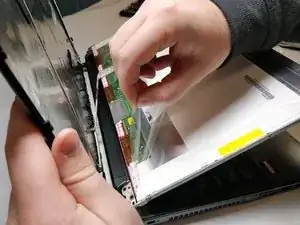

    • Remove the plastic covering the connections on the backside of the screen.

    • Make sure back plate is being held so there is no strain occurring on the still connected cables.

  12. h5FGMHVRr5QCcprM
    h5FGMHVRr5QCcprM
    EVZFDYudJggWbIf5
    LUvGJCnn5hosu22n

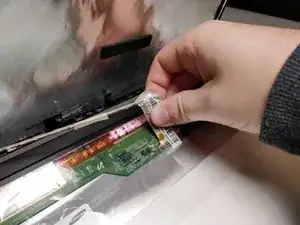

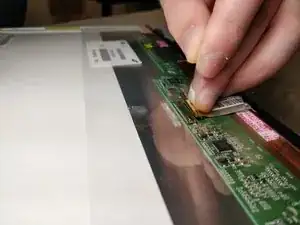

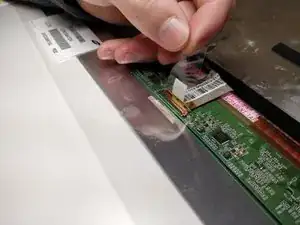

    • Pull up on the tape holding down the ribbon connector.

    • Using the brown colored part of the cable pull the cable out of the connection point

    • The connection point is delicate, try to pull straight back and away from the connection point.

  13. VEedrShmg2WTveHQ
    VEedrShmg2WTveHQ
    oIbaZSUmtH5Qq2G4
    ahiNXYcpNI4uLcdv

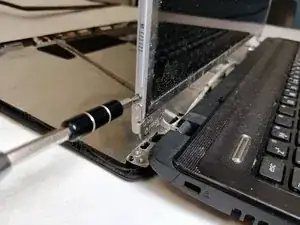

    • Using a JIS #00 screwdriver, unscrew the six 2.5 mm screws while holding the bracket to the screen on the sides.

    • The screen should be easily removed when all of the screws are taken out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
