Asus K55VD DVD Player Replacement

Geschrieben von: Hector Morales
  • Kommentare: 2
Asus K55VD DVD Player Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

If your Asus K55VD is having problems reading DVDs, not playing audio or videos properly, or DVD programs won't install properly then it may be experiencing a faulty optical disk drive which needs to be replaced.

    • Power off the device completely

    • Flip the device over to its back cover.

    • Use the switches to release the battery from its adapter.

  2. 4daYpsKUIAYpea2R
    4daYpsKUIAYpea2R
    gQoFWQSSvoSTEXqv

    • Use a Phillips #0 screwdriver to remove the two 1.5 mm screws in the smaller portion of the bottom cover.

    • After removing the screws, remove the smaller cover.

  3. DOZcYOnQPVRjWdVY

    • Use a Phillips #0 screwdriver to remove the 1.5 mm screws that hold down the hard drive.

    The bottom left screw does not hold down the drive bay. Unsrew that screw in step 5.

    Daniel -

  4. qQM5fPhSKZmOxAmN
    qQM5fPhSKZmOxAmN
    WvWRKVpLQ2HOhgGn

    • Remove the hard drive from the slot.

    • Remove the hard drive from its shell.

  5. ErRlFPEYp42fuuWi

    • Using the the Philips #0 Screwdriver remove highlighted screws.

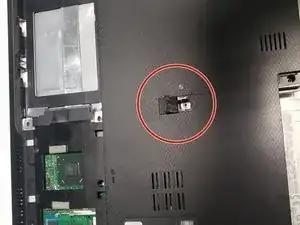

  6. pRDwU12KphCfrieH

    • Lift plastic cover with tweezers.

    • Remove screw.

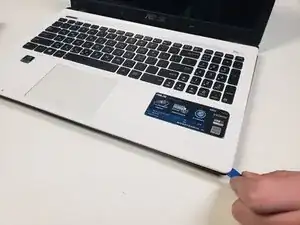

  7. LR2tMX2p1xE6lFL4

    • Lift keyboard panel with plastic pry tool to remove.

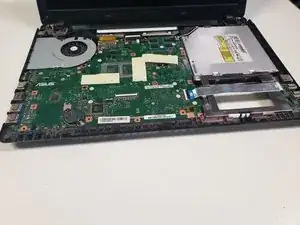

  8. FfWnIWBBeLjNvbjj
    FfWnIWBBeLjNvbjj
    AODORGwMrYSMWkZg

    • Unhook all ribbons to remove keyboard panel completely.

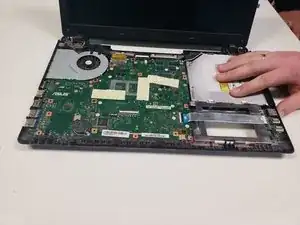

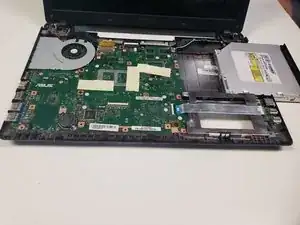

  9. dVYfidG3aFSj2WIa
    dVYfidG3aFSj2WIa
    Lwd6bM2pYKBy41L1

    • Slide the DVD Player outward.

Abschluss

To reassemble your device, follow these instructions in reverse order.
