Einleitung
The Asus K55A-Si50301P USB 3.0/Audio port Replacement Guide explains the tools and processes used to replace/remove the board as needed. A USB/Audio port may occur to be damaged/faulty when general hardware malfunctions cause an inability to use the port properly or when the port has sustained physical damage rendering it unusable. A USB is not working properly when a device is unable to plug into the port in the correct orientation or will plug in and yield no results. An audio port is not working properly if the jack cannot be fully inserted or sound cannot be heard. The Asus K55A-Si50301P Troubleshooting page may be referred to here as needed.
Werkzeuge
-
-

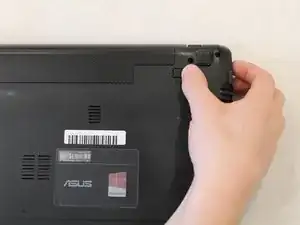

Press and slide the two battery retention clips on either side of the battery towards the unlock position.
-
-
-
Pull the retention clip on the left hand side of the laptop away from the battery.
-

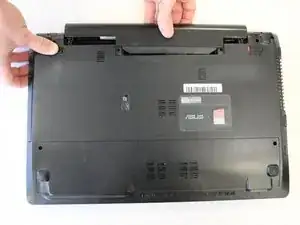

Gently pull the battery out with your free hand.
-
-
-

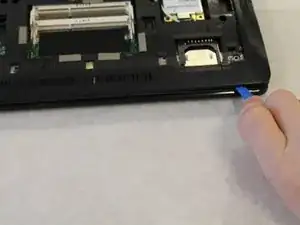

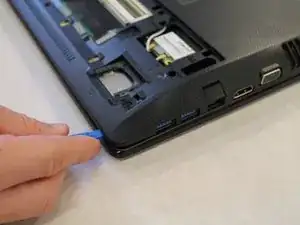

Use the iFixit opening tool around the outside line where the top of the laptop meets the bottom to separate components.
-
-
-

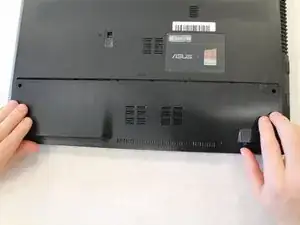

Flip the laptop over and lift the keyboard tray gently towards the screen.
-
Remove the 3 ribbon cables from the motherboard end.
-
-
-

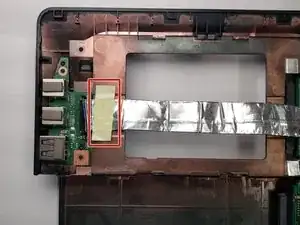

With the keyboard tray out of the way, remove the tape holding down the accessory board ribbon cable.
-
To reassemble your device, follow these instructions in reverse order.
