Use this guide to replace the fan in your Asus R510CA-OB01 laptop.
A Wi-Fi card acts as a gateway between the computer and your wireless network, allowing it to exchange data with other Wi-Fi devices.
Slow ping times and network disconnects may be the result of a faulty Wi-Fi card. Try resetting it and downloading drivers before installing a new one.
Before beginning, make sure to power off your computer. Disconnect it from any external power source. Remove dust build-up with a dust blower.
-
-
Press and slide the two battery retention clips on either side of the battery towards the unlock position.
-
-
-
Pull the retention clip on the left hand side of the laptop away from the battery.
-
Gently pull the battery out with your free hand.
-
-
-
Using the iFixit opening tool, gently pry the plastic cover away from its original position.
-
-
-

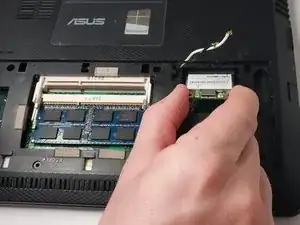

Remove the white and black wires from the card.
-
This does not require much force. Simply squeeze on the sides of the connector and allow the end to pop off.
-
To reassemble your device, follow these instructions in reverse order.
