Asus Laptop K43SA A43SA Thermal compound Replacement

Geschrieben von: jpl2288
  • Kommentare: 3
Asus Laptop K43SA A43SA Thermal compound Replacement

Schwierigkeitsgrad

Moderate

Schritte

26

Zeitaufwand

1 - 2 Stunden

Einleitung

After many years of intensive use, most of laptops begin to heavily overheat and also to become noisy, mainly due to dust and to a dried up thermal paste.

Take your time to manage correctly the task, there are many ways to break some components while doing this.

However it's not as hard as it seems, in my mind everybody can manage successfully by taking a few simple precautions.

-Again, Take your time!

-Disconnect all power cables.

- Use a grounded wrist strap or touch a safely grounded object or a metal object, to avoid damaging the motherboard due to static electricity

-Be organized and do not mix the different types of screws. Reassembling a computer takes way more time. Feel free to take pictures when disassembling components which you don't feel being able to reassemble correctly on your own.

This guide can be applied more generally on the Asus K/A and X series (K43, K53, A43, A53, X43, X53).

In addition, opening your laptop voids the warranty. Be careful.

  1. mnRHS1Mer3uhN4lQ

    • Don't forget to remove the battery and back up your data before processing.

  2. qkHGfcNZWocQlrpa

    • Remove the two philips screws from the cover.

  3. HVQZDqeFDJsS3Vq3
    HVQZDqeFDJsS3Vq3
    XtOTOp4moAC5qyGj
    OPEpfr6cjTscRTLr

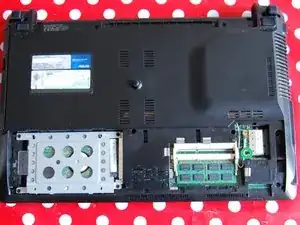

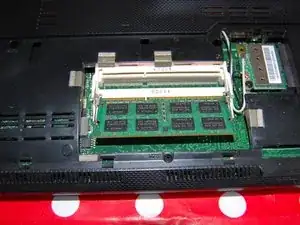

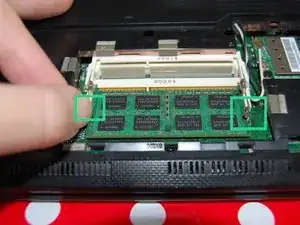

    • We can see different elements in here :

    • Wifi card

    • Hard drive

    • Ram memory

    • Release the tabs on each side of the chip by simultaneously pushing each tab away from the RAM.

  4. r1tOaEeWbUQIZH3x
    r1tOaEeWbUQIZH3x
    cZeM6A5b4EN561uX
    CXg5XAc5WohTleeQ

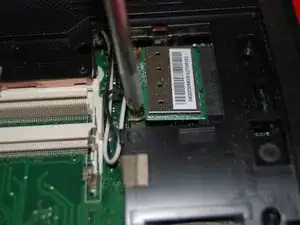

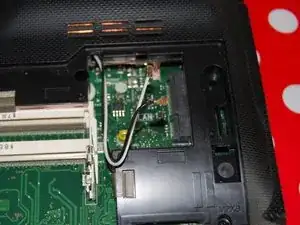

    • Remove the single screw from the wireless card.

    • Remember the position of the cables. Here the white cable is on the top of the wifi card.

  5. aZFCVFFKphYnchbu
    aZFCVFFKphYnchbu
    Neda3ADrLx5OtU1J
    YZQQNoqP12FDN4oZ

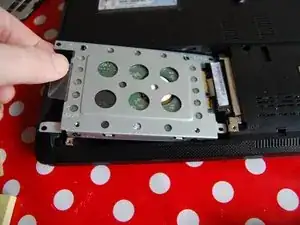

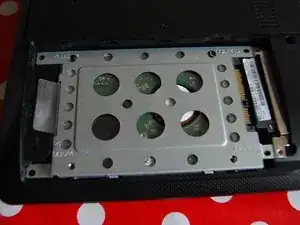

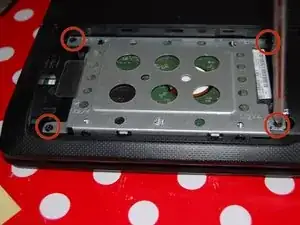

    • Remove the four screws from the hard drive cage.

    • Then slide the cage to the left.

    • Finally, remove the hard drive.

  6. tkvSdQZHAxLU4UBp
    tkvSdQZHAxLU4UBp
    RoKVvNWB1rCdQvDv

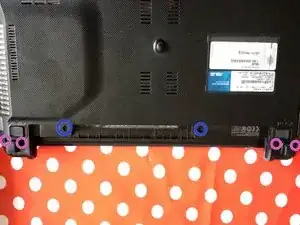

    • Remove the four M2X8 screws.

    • Remove the single M2X4 screw.

    • Remove the two M2.5X12 screws just below the battery

    • Remove the other four screws at each side, next to the battery.

  7. lTWMjWBxd2G1amig
    lTWMjWBxd2G1amig
    VyyGCqtmmsdxI1KI
    NBcbiRMoPAZtkOIQ

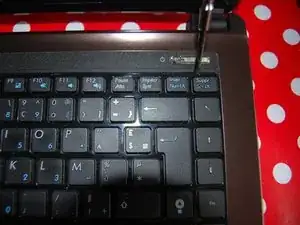

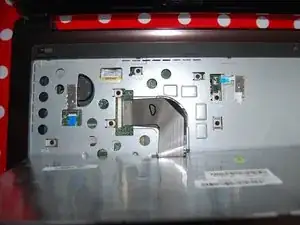

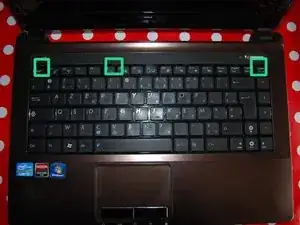

    • With a flathead screwdriver, push the clips in order to release the keyboard.

    • The keyboard is held by glue. Remove it carefully.

    • The keyboard's cable is just below the keyboard. Gently Remove the keyboard by lifting its upper part.

  8. BTPIrij3JVyMKLvK
    BTPIrij3JVyMKLvK
    2m6TDsO2YHEybZah

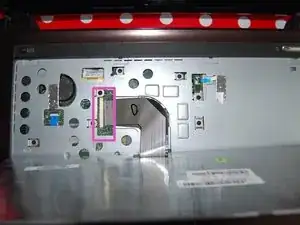

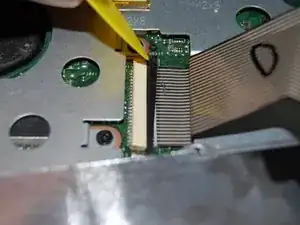

    • Now we are going to remove the keyboard connector.

    • Push gently each side of the black part of the connector with a pick.

  9. wkCBnMcwof1gSUii
    wkCBnMcwof1gSUii
    GMHt1gMuBZjwPxDG
    RnpHkGrdlGJMHCyH

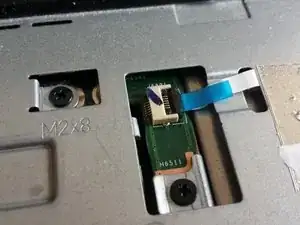

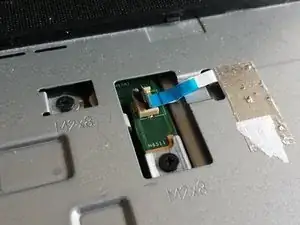

    • Then we are going to remove the other two cables.

    • It's a bit different here. You will have to lift up the black part of the connector ( with an opening pick) , and then pull the cable.

    • Be careful, when you reconnect this kind of cables. You can see in the second picture that there is a marker. The black line on the cable is aligned with the white line on the motherboard. This indicates that the cable is properly inserted into the connector.

  10. wCJrCqWgeCboUIFF
    wCJrCqWgeCboUIFF
    pRugwagJbn4BjfAw

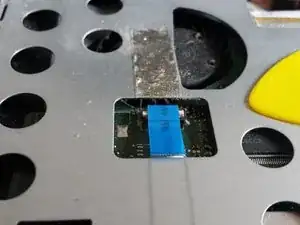

    • Proceed the same way for that one.

  11. udEOJJHBHfrwPScq
    udEOJJHBHfrwPScq
    HBhKjwFgvKGZnTRq

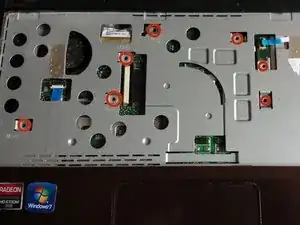

    • Then remove all the M2X8 screws.

  12. hqugZbExbe6XxYHE
    hqugZbExbe6XxYHE
    V1PtKJamiARUlnHL

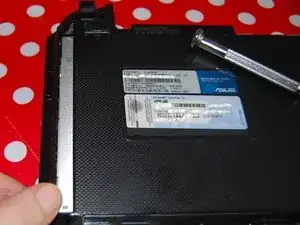

    • Now you can easily remove the DVD/CD drive.

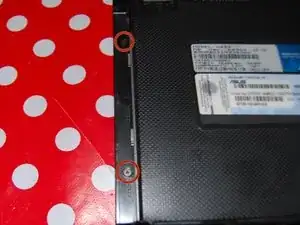

    • Just below the DVD/CD drive, there are two little screws to remove.

  13. QppfP2kEifmMeC1r
    QppfP2kEifmMeC1r
    5yTGNNYq65eLuVYX
    EAANpw5VEflYJBUG

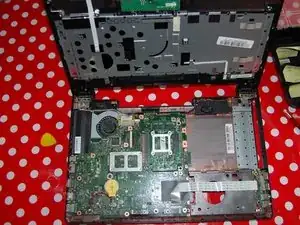

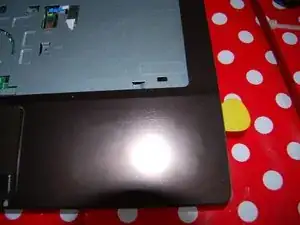

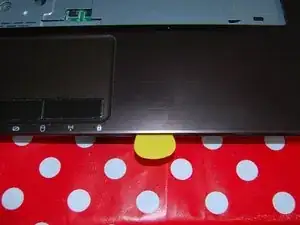

    • You can now remove the brown metallic cover by inserting a pick underneath. You'll have to insert the pick all around the cover in order to remove it.

    • We now have access to the motherboard.

  14. vOl2EK6AM1cgAq2e

    • Remove this cable the same way than the step 9 and 10.

  15. D2uNuS1GHMWDJ2IX
    D2uNuS1GHMWDJ2IX
    OnMkH1icUKNgAOMU
    4ACD16pQtXcw2jkE

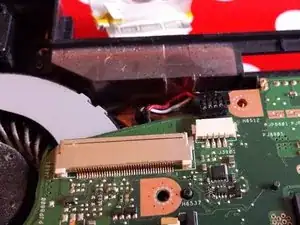

    • For this screen's cable you will have to proceed the same way than the step 8 with the keyboard's cable. Push gently each side of this cable to release it.

    • Then remove the little one.

  16. TQ2jrMykmjb5V5sN
    TQ2jrMykmjb5V5sN
    xWnSHB2kkUL3pjaE

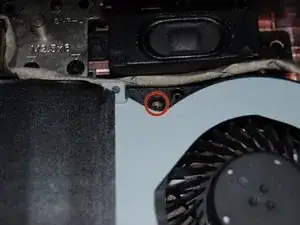

    • To completely release the motherboard, remove this two screws.

    • You will notice that there is a little arrow indicating the location of the screw to remove.

    • You can now easily remove the motherboard from the case.

  17. uXPoBuyDP6yxq1eG

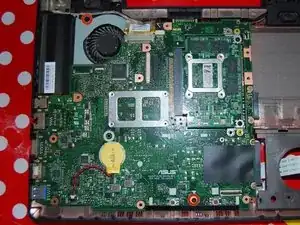

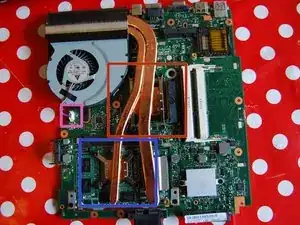

    • Here we are ! The motherboard is now fully released.

    • There are two elements in here:

    • The CPU.

    • The GPU.

    • Disconnect the fan cable.

  18. DtOUjidtbNX5FlSB

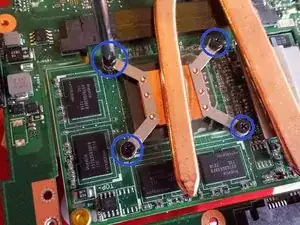

    • Remove the four screws from the GPU.

  19. gXqSkK6LGG5ZBqct

    • Remove the four screws from the CPU.

  20. GLQJLEwuCHFrwvti
    GLQJLEwuCHFrwvti
    XNQcAtQKe2VCEtLe
    uLP1IoMAjWCsfSv4

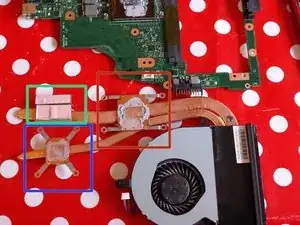

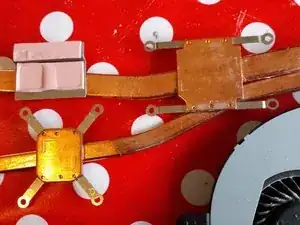

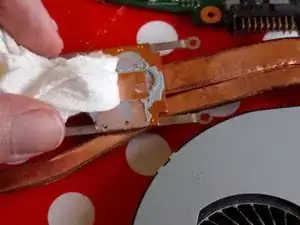

    • When the cooler is removed from the motherboard you can notice the dried up thermal paste.

    • Clean both surfaces with alcohol and paper towels.

    • Do not remove the pink thermal pads.

  21. hNESgXIhAxx3MQxU
    hNESgXIhAxx3MQxU
    YbmZgC2iEEhfiUjW
    3FOCkFChGLMIFoL3

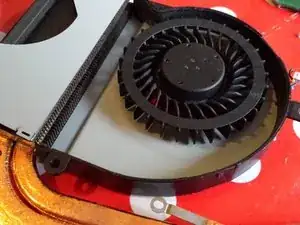

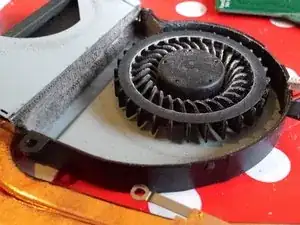

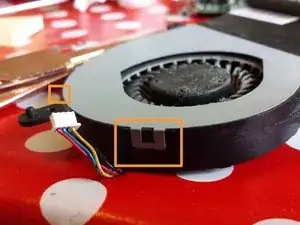

    • We are now going to clean the fan.

    • Use a flathead screwdriver to unclip the grey part of the fan.

    • And...you will notice a disastrous amount of dust stuck into the cooler.

    • This dust is largely responsible for the overheating and excessive noise from the laptop.

    • Take a vacuum cleaner and a brush and clean everything.

  22. GxD5CHNPiucwgo2i
    GxD5CHNPiucwgo2i
    WYy6VtbDDOEfdDEk
    CSQQ1OAGhvxTTohL

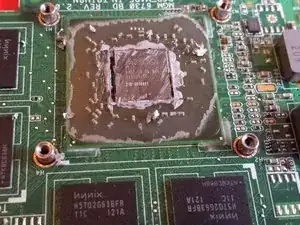

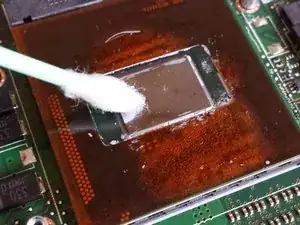

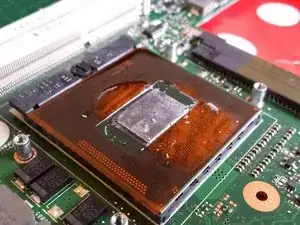

    • Scratch the old thermal paste from the surface of the CPU with a pick or a plastic opening tool .

    • Use alcohol, q-tips and paper towel to completely remove the residual traces of thermal paste on the CPU.

  23. fEOJmvOWSX35VKNP
    fEOJmvOWSX35VKNP
    5WfOxUMAvbsKWx3Z

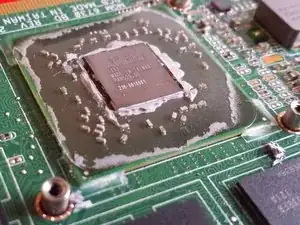

    • Proceed the same way for the GPU.

  24. XdjtufhMmW6LieYO

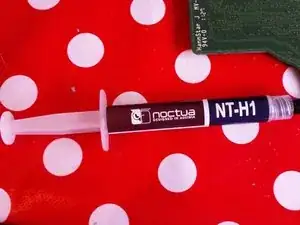

    • This is time to replace the old paste with a new one. Buy a good quality paste to ensure a proper heat dissipation.

  25. FgWRHGWPd6ZOSGIZ

    • "Put a small drop ( 4-5 mm diameter) of thermal paste onto the centre of the heat-spreader."

    • This is actually the usage instructions from Noctua.

  26. 5luuySTXoFCvhSYB
    5luuySTXoFCvhSYB
    IOJInD5PlUZgnjF5

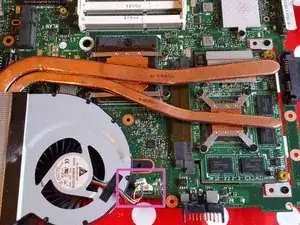

    • It's almost done!

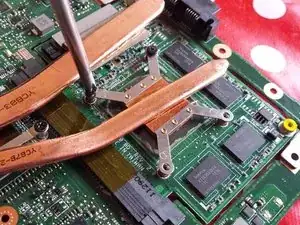

    • Replace the cooler on the CPU and GPU by slightly moving in all directions to spread the thermal paste.

    • Screw the cooler.

    • Do not forget to reconnect the fan cable.

    • Reassemble the laptop and.... enjoy the silence of the computer!

Abschluss

To reassemble your device, follow these instructions in reverse order.
