Asus M51E-B2 Swivel Camera Replacement

Geschrieben von: Juston Brown
  • Kommentare: 0
Asus M51E-B2 Swivel Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

This guide shows you how to properly fix your laptop's swivel camera. This is an easy fix in order to get your camera to function properly. In order to accomplish this, you will need a dual-tipped metal spudger and a Phillips PH0 head screwdriver.

  1. LmNsUxSyYo4JCSPL

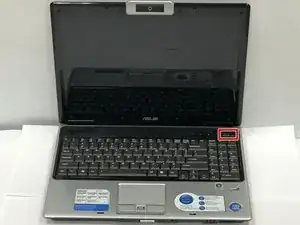

    • Open the laptop.

    • Press and hold the power button until the laptop powers off.

  2. BFA6Ank4o2HLQ1tB
    BFA6Ank4o2HLQ1tB
    OUA4wLGnDQqjHenq

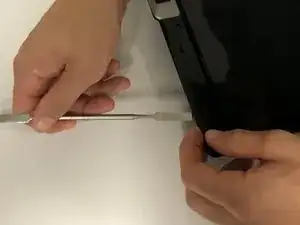

    • Use a metal spudger prying tool to remove the outer screen cover of the laptop.

    • Gently work your way clockwise around the outer part of the screen.

  3. teqfA4PxDgbyNaQR
    teqfA4PxDgbyNaQR
    OLSKoNxhn2hfhAMI

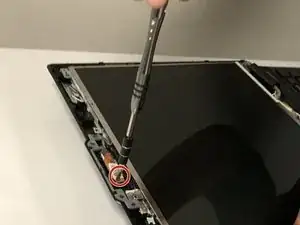

    • Use the Phillips PH0 head screwdriver to remove the two 2.5 mm screws located on the left side of the camera.

    • Use the Phillips PH0 head screwdriver to remove the one 2.5 millimeter screw that goes through the left side of the camera.

  4. PYJHO4yX1R1TalaK

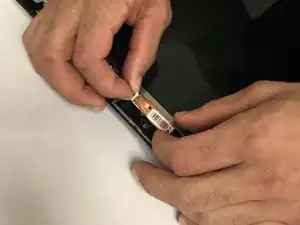

    • Find the wiring harness on the right side of the camera.

    • Using your fingers, gently remove the wiring harness connected to the right side of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
