Asus MeMO Pad 7 (ME572C) Battery Replacement

Geschrieben von: Tyler Tripp
  • Kommentare: 6
Asus MeMO Pad 7 (ME572C) Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to replace a battery for a Asus MeMO Pad 7. The battery replacement is a simple procedure. If the battery is dead, the replacement could help your tablet to turn on.

  1. mNMhnjOM5Vr1J5XT
    mNMhnjOM5Vr1J5XT
    m3ZXucayTd2DBYYf

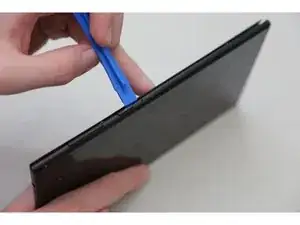

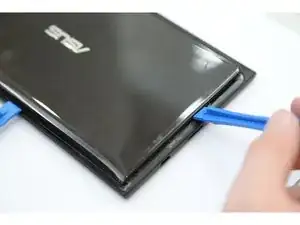

    • Make sure your device is turned off. Then with a plastic opening tool, carefully remove the back panel by carefully working your way around the perimeter.

    • The panel will be glued on and requires pressure to open.

  2. jpZeNbAH2dpyERTX
    jpZeNbAH2dpyERTX
    VxpgwZAmTNUw1s22
    ivpKg6Bfu1aOnOFb

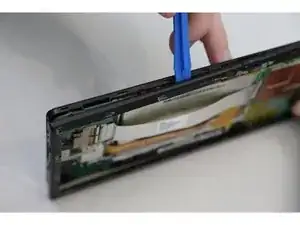

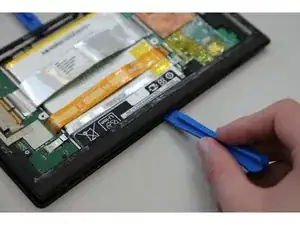

    • After removing the rear panel, use a plastic openning tool to remove the frame of the tablet.

    • Start in the middle of the top side and insert a plastic opening tool between the screen and the frame.

    • Carefully run the plastic opening tool along all the edges of the tablet.

  3. 3xvQWlHwvA4ZNqWe

    • When you take the rear panel and the frame out, place the rear panel and the frame away from the device.

    You do not need to separately remove the back and the frame. You can do it in 1 step if you start around the screen and remove the frame and back together.

    Visegradi Istvan -

    Where can I find rear panel please help?

    Simeon Tembo -

    Exact, on peut déposer le volet arrière en 1 seul fois. Commencer sans outil, juste avec les mains en forçant légèrement sur un angle inférieur (droit ou gauche peut importe) afin de déboîter un premier clips-plastic. Puis avec un outil fin en plastique (pas de métal de préférence !) faire le tour de l’écran afin de déboîter tous les clips-plastic. Merci pour ce post.

    Loïc MALECOT -

    To keep the frame notches intact, pry the frame first sideways, then to the back, lifting the outside notches of the frame over the inside notches of the device.

    My rear panel seems welded together with the frame, so came off as a whole. I noticed 8 inside/device notches of the total 4x6 notches broke in the process.

    Before disassemble, I noticed in the middle on the longer side, next to the power button, already a gap, through which I saw the copper shining of the sidekeys part. Maybe because of temperature expansion or strain of the elastic corner clips of the sleeve I used.

    Eduard -

    Correction: “To keep the frame notches .. device.” = “Notches on the plastic motherboardchassis are snapped over notches of the outside frame locking both together. To keep the chassis notches intact, .. chassis.“

    Eduard -

  4. mIjNYSxSXUsV6yEH
    mIjNYSxSXUsV6yEH
    vhmEW3pPe2bURhWH
    oGLKgLEpS1rOGNie

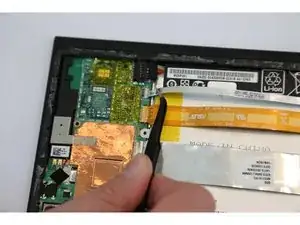

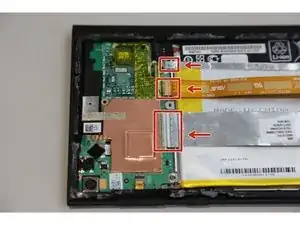

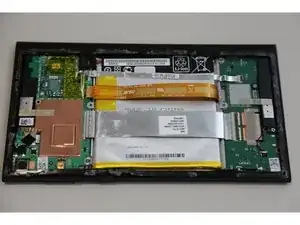

    • Disconnect the ZIF connectors to release the data cables holding the battery in. Use tweezers to do this.

    • You can also use your hand to remove ZIF connectors.

    • ZIF connectors are delicate so be careful when you are removing them.

  5. SmCiI4AIVWMlvbVp

    • Find the place where the battery connector is. Disconnect the battery connectors by carefully pulling up on them using a spudger or plastic opening tool.

  6. KrPoLLB51bvGreTm
    KrPoLLB51bvGreTm
    JCMYoPRKkjpoX5WR
    ycxPdltfBQbYWCkR

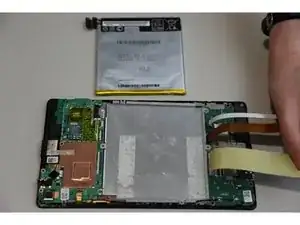

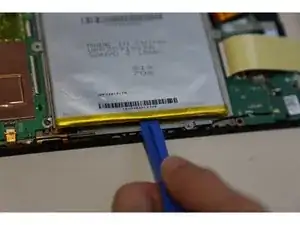

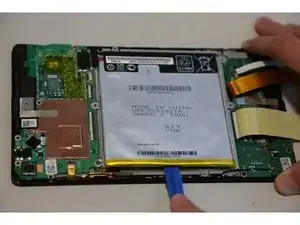

    • Using a plastic opening tool carefully pry the battery loose. The battery is glued to the pad; slight pressure will be needed to remove the battery.

    • The casing of the battery is soft and can easily tear. Tearing can lead to the chemicals in the battery to leak out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tyler Tripp

Mitglied seit: 26/08/15

395 Reputation

Ein Kommentar

But whats the secret to cleaning off the glue and resealing it?

Pico Herbie -
