The power button is how the device's power source is turned on. This device has a an integrated power and volume button. Sometimes the button becomes damaged after excessive use or pressure and no longer works. This is one of the simplest components to replace.
Werkzeuge
-
-
Gently wedge a Jimmy into the seam of the device.
-
Gently pry the Jimmy all around the seam until the back panel is detached.
-
-
-
Locate the black bundle cable connector attached to the battery of the phone.
-
Using a plastic opening tool, gently slide the black bundle cable connector towards the battery in a back and forth motion until loosened and it slides out of connection port.
-
-
-
Using a plastic opening tool, pry out the batteries to loosen them out.
-
Lift the battery out of its port
-
-
-

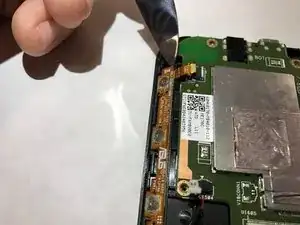

Locate the cable that connects the power button to the motherboard.
-
Carefully lift and release the connector lock that keeps it attached the motherboard. The connector lock rotates up away from the connection to release.
-
Carefully release the connection from the motherboard.
-

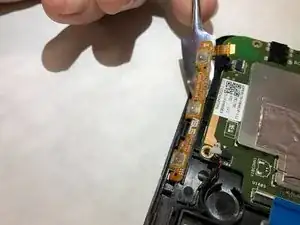

Gently pry the power and volume button away from the case. There should not be much resistance when prying the button off.
-
To reassemble your device, follow these instructions in reverse order.
