The speaker is where sound comes out. When videos or music are played too loudly, it can cause the speaker to blow. This is a component of the Memo Pad that needs to be replaced when this problem occurs.
-
-

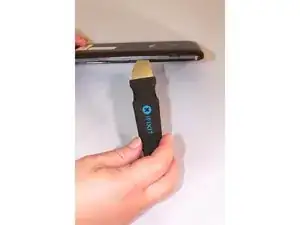

Using the Jimmy tool, gently wedge it into the seam of the device at the side.
-

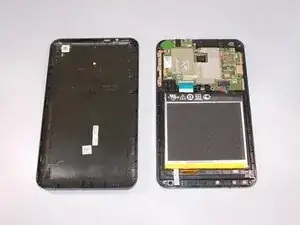

Pry the Jimmy tool gently all around the seam. Use up and down motions until the back panel is detached.
-
-
-

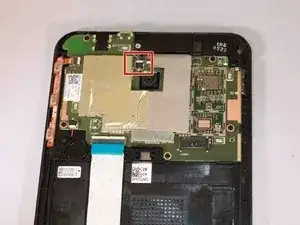

From the top of the tablet, locate the white cable connector.
-

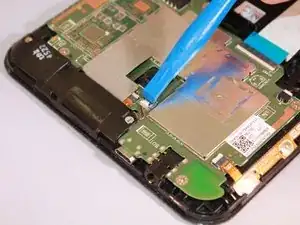

Use the blue plastic opening tool to push the white cable connector out of the port.
-
-
-
Use the Phillips #000 screwdriver to remove the seven screws.
-
There should be two silver and five black screws for a total of seven screws.
-
-
-

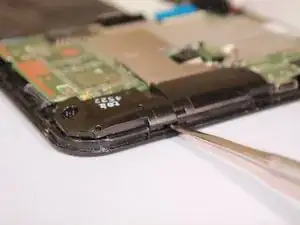

Use the slender, metal spudger tool to gently lift up the edge of the speaker to remove the device.
-
To reassemble your device, follow these instructions in reverse order.
