Asus MeMO Pad 8 ME181C Speaker Assembly Replacement

Geschrieben von: Geoff Wacker
  • Kommentare: 0
Asus MeMO Pad 8 ME181C Speaker Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

3 - 5 Minuten

Einleitung

  1. dL6fQXDQZxwTRZVl
    dL6fQXDQZxwTRZVl
    EBfphjvU5ejYxTrP

    • Insert a plastic opening tool into the seam between the rear case and the screen.

    • Work the plastic opening tool around the perimeter of the device to completely remove the rear case.

  2. BeZiYo1RlII1PlHu
    BeZiYo1RlII1PlHu
    hXnOXSGW2syjspw2
    BDJb1GlTrnGHLFui

    • Use the flat end of the nylon spudger to flip up the retaining flap of the Zero Insertion Force (ZIF) connector holding the orange motherboard ribbon cable in place.

  3. sKgYYkSNLMMZfLHI
    sKgYYkSNLMMZfLHI
    fONVhIYjNJ5TWDXo

    • Use the flat end of the nylon spudger to flip up the retaining flap of the ZIF connector holding the black motherboard ribbon cable in place.

  4. VV3gLeNP6MCXZKFf
    VV3gLeNP6MCXZKFf
    fWGvJ4ImHpAKwsLS

    • Use the pointed end of the nylon spudger to pop up the battery connector.

    • When reconnecting the battery cable after replacing the battery, press the battery connector with your finger until it clicks into place.

  5. NOZM31v31sKdvQum
    NOZM31v31sKdvQum
    cGEQnI52DqFkenHU

    • Use the flat end of the nylon spudger to pry up the battery.

    • The battery is secured with adhesive. Some force is required to detach battery from the device.

    • If removing motherboard is necessary, it may be easier complete this step with the motherboard simultaneously later.

  6. tQiXqwDhlIKXjc1h
    tQiXqwDhlIKXjc1h
    vrueyt2qKhvmffEO
    OE3GhTrjCxSnTqFG

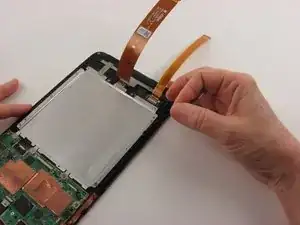

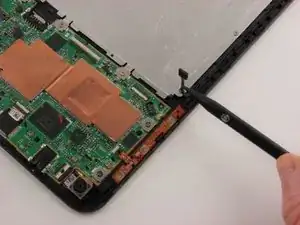

    • Use the pointed end of a spudger to disconnect the speaker cable.

    • Gently pull the speaker cable out of its channel along the left side of the device.

  7. YGeYNSrxgEA6gbIa

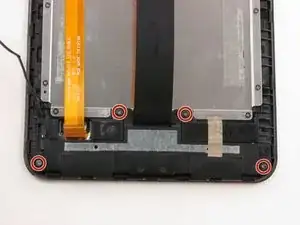

    • Remove the four 3 mm Phillips #000 screws securing the speaker assembly.

  8. K3YLvANsCuJn5qyY
    K3YLvANsCuJn5qyY
    WiMwCbv5NDe3KkiA

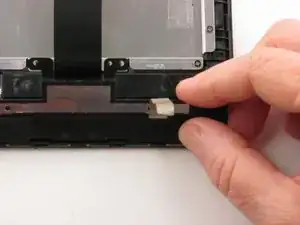

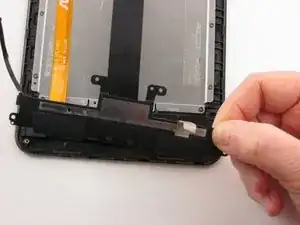

    • Remove the speaker assembly from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
