Asus Memo Pad ME172V - Touch Screen Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Asus Memo Pad ME172V - Touch Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

20 - 30 Minuten

Einleitung

How to replace broken or not working touchscreen.

WARNING! Work carefully and start only if you are confident you can do it!


Please SUBSCRIBE to my channel ツ

  1. HSSHBZ1n4UjcJ2h5
    HSSHBZ1n4UjcJ2h5
    WBW1MTMJiE1KNAaB
    SPiPcwrcnoomWTkR

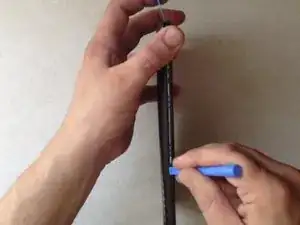

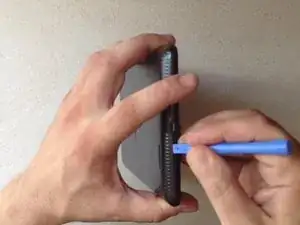

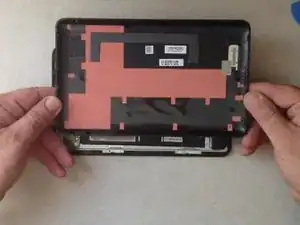

    • Switch-off the tablet.

    • By using a plastic tool open the back / battery cover.

    Could you please advise an online display replacement supplier, other than aliexpress. As reviews for this product their are non encouraging at all..

    Thanks for your video..

    Moh Haider -

  2. XDGqpelVrQGkmcH4
    XDGqpelVrQGkmcH4
    TWIL5PKDytO4AFiA
    y41AAkjQIIDaYJoN

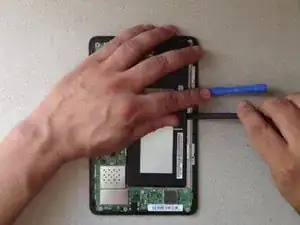

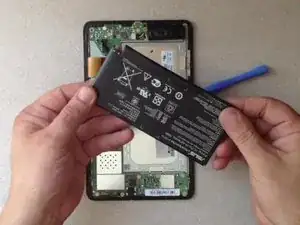

    • Disconnect and remove the battery.

  3. X4JnyihQmyvYROrj
    X4JnyihQmyvYROrj
    kRAPLoI3QQCKXnr1
    Oxhd6GBEbWvhVVNd

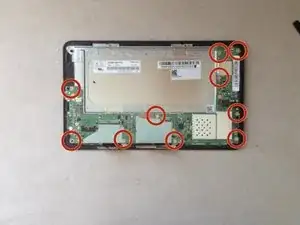

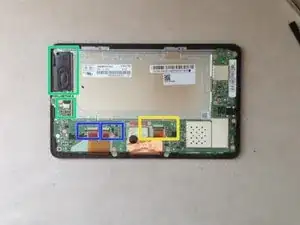

    • Disconnect the LCD display flex cable.

    • Disconnect the touchscreen flex cable.

    • Disconnect and remove the loudspeaker.

    • Unscrew 10x screws.

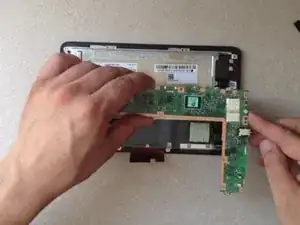

    • Now you can remove the mother board

  4. rs3cMQPbRtv436JC
    rs3cMQPbRtv436JC
    bF2pGtINd5MNFGAm
    rnRDOP4Gntpnw1CI

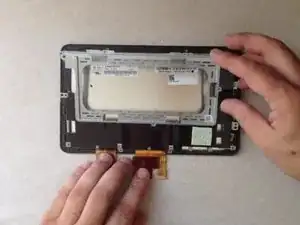

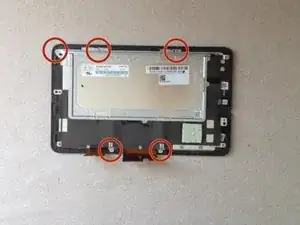

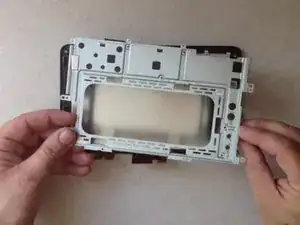

    • Remove the metal LCD display shield.

  5. wq1OOsSQMSwyeXlh
    wq1OOsSQMSwyeXlh
    3SinF1DZkRDObaQI
    EPyBIcKPKASejhEq

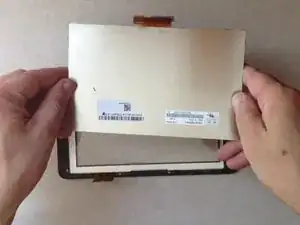

    • There are many clips holding the LCD panel to the metal frame.

    • Use a spudger to loosen the clips holding the LCD display.

  6. 6LTfuSLHZAc2uZER
    6LTfuSLHZAc2uZER
    suSg6FJ5i665LCnL
    pFMDJBd3rR5Yh6wl

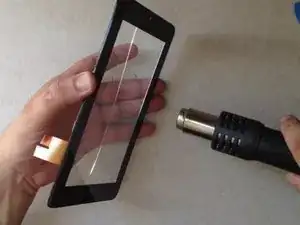

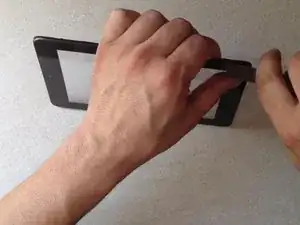

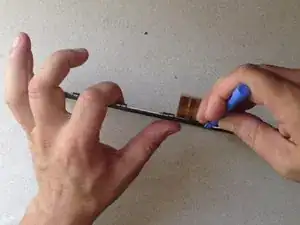

    • Heat the touch screen.

    • Use a cutter only to start detachment the touchscreen. Then continue with a plastic tool.

  7. 3upvoD1VcjACu4X3
    3upvoD1VcjACu4X3
    ntGNNSP5PPJREPd2
    IjB61Hl2srQBJ5Os

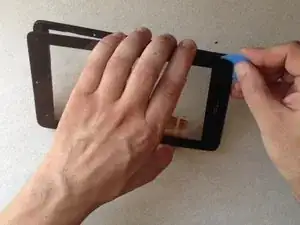

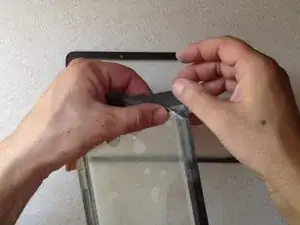

    • After separation the touchscreen from the front bezel, remove the LCD display frame.

    • This spare part have a double sided adhesive tape. Otherwise you should place.

    • .

    • Did you do it successfully?

    • .

    • Please SUBSCRIBE to my channel ツ

Abschluss

To reassemble your device, follow these instructions in reverse order.
