Asus N56VM Hard Disk Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. ma3bi1FDMrXPHCOe

    • Remove the battery and the AC power

  2. 4RhyBndXV46Es2Qj
    4RhyBndXV46Es2Qj
    OiypYqdtkLCtjHuj

    • Remove the M2x4 screw of the bottom cover

    • Remove the bottom cover by sliding it downwards

  3. duJFJEeDrLys3y15
    duJFJEeDrLys3y15
    MfwvJELipaViiucx

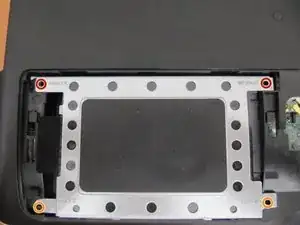

    • Remove the screws

    • Remove the 3 M2x10 screws

    • Remove the one M2x4 screw

  4. KIc5JUWdUIKx5MnD

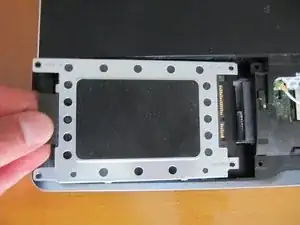

    • Gently pull the hard disk to the left

Abschluss

To reassemble your device, follow these instructions in reverse order.
