Einleitung
Replace your defective motherboard to allow other hardware components to be able to communicate with each other effectively again.
-
-

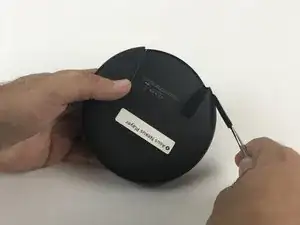

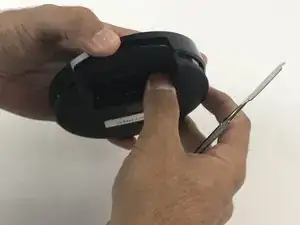

Use a PH1 Philips-head screw driver to unscrew the four 8 mm screws holding the shield in place.
-

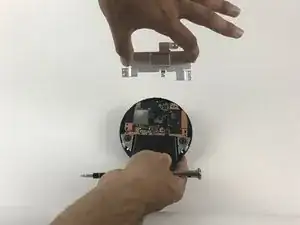

Once screws are removed, simply lift the shield away.
-
-
-

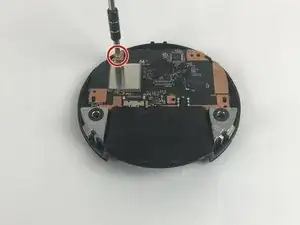

Remove the 5 mm screw using the PH1 Phillips-head screwdriver to be able to remove the motherboard.
-

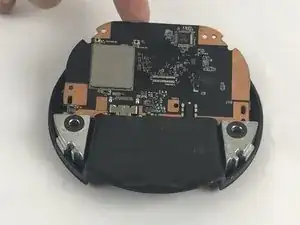

After the screw is removed, lift the motherboard out of the frame.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
