Asus PadFone S Front Facing Camera Replacement

Geschrieben von: Everette Gonsalves
  • Kommentare: 0
Asus PadFone S Front Facing Camera Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will show you how to remove the front camera of your Asus PadFone S. Some common tools are required for this replacement so make sure you have them before you start. You must also remove the battery and logic board beforehand. This guide will make it easy to replace a broken or damaged front camera to get your phone working again.

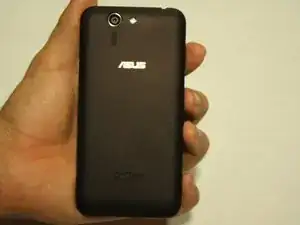

  1. v2B2EYYWWQLAZUVW

    • Place your thumb in the charging port and pry the back cover off of the phone.

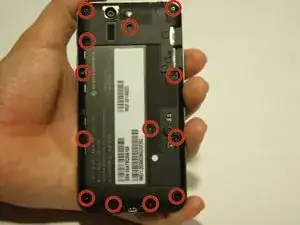

  2. 5Ll4cQPMMBnOdYJX
    5Ll4cQPMMBnOdYJX
    XtOgEVDmMOYEYI5S

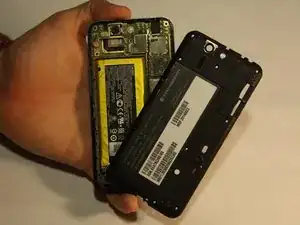

    • Remove all screws using the T5 Torx screwdriver

    • Lift the back panel off the phone.

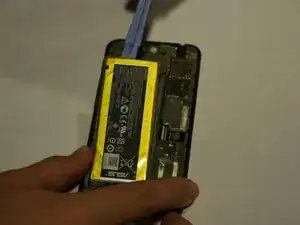

  3. QgAcpJbaTNJUqJlN
    QgAcpJbaTNJUqJlN
    ZEX1Eodnm65cHUTp

    • Disconnect the battery from the logic board using tweezers

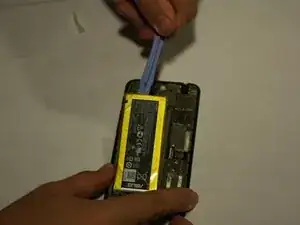

    • Using the plastic opening tools, lift the battery up from its slot

    • Apply consistent, steady force to lift the battery from its slot. Be careful not to damage the battery while removing it.

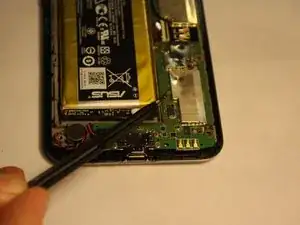

  4. JVZXRGDb1C1CkBk6
    JVZXRGDb1C1CkBk6
    rH2UNbLiYDmlCEtG
    vJ5R2oRxTbHXYrMa

    • Once the Battery has been successfully removed, move on to the step 2.

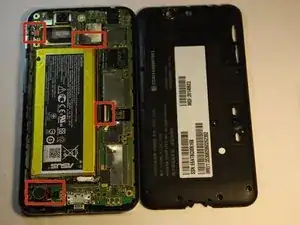

  5. xmQuLnGuCaSLLMX5
    xmQuLnGuCaSLLMX5
    PVROWQmFLS4emwPS

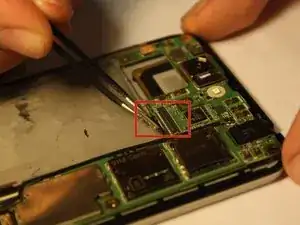

    • Disconnect the marked strips from the logic board using the tweezers.

    • Applying too much force may damage the strips/connectors.

    • Remember to remove speaker connection located at the bottom left hand corner.

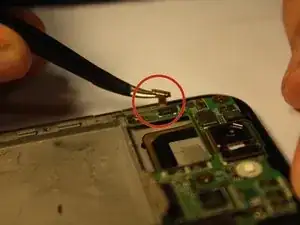

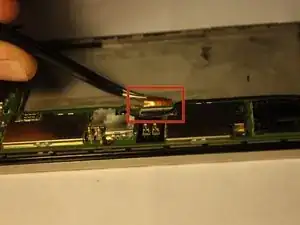

  6. BSyJntlWp35XJbtK
    BSyJntlWp35XJbtK
    S5pvqa4SOgavFUJP

    • Disconnect the other two strips that connect the logic board to the phone.

    • Applying too much force may damage the strips/connectors.

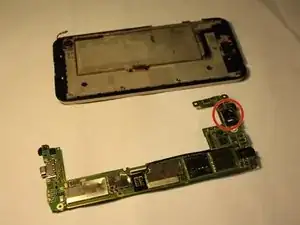

  7. ADrx4ZS1bTUOm2W2
    ADrx4ZS1bTUOm2W2
    NRlYSxsQVgFLXjHU

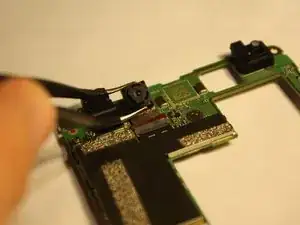

    • Turn over the logic board to locate the front camera.

    • Grasp the sides of the camera with the tweezers and carefully remove the camera from the logic board.

    • Applying to much force will damage the connective strip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
