Asus PadFone S Motherboard Replacement

Geschrieben von: Greg Betsold
  • Kommentare: 1
Asus PadFone S Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will show you how to replace the logic board of your Asus PadFone S. Some common tools are required for this replacement so make sure you have them before you start. This guide requires some skill and you must be careful when following directions. This guide will help you with other replacement guides for the Asus PadFone S.

  1. v2B2EYYWWQLAZUVW

    • Place your thumb in the charging port and pry the back cover off of the phone.

  2. 5Ll4cQPMMBnOdYJX
    5Ll4cQPMMBnOdYJX
    XtOgEVDmMOYEYI5S

    • Remove all screws using the T5 Torx screwdriver

    • Lift the back panel off the phone.

  3. QgAcpJbaTNJUqJlN
    QgAcpJbaTNJUqJlN
    ZEX1Eodnm65cHUTp

    • Disconnect the battery from the logic board using tweezers

    • Using the plastic opening tools, lift the battery up from its slot

    • Apply consistent, steady force to lift the battery from its slot. Be careful not to damage the battery while removing it.

  4. oGHtMIFKNkkXmuwj
    oGHtMIFKNkkXmuwj
    6xRmWnqFkZOyOJkQ
    XxdoCQ4yqlPDVQIP

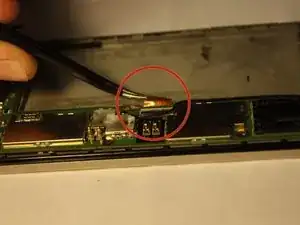

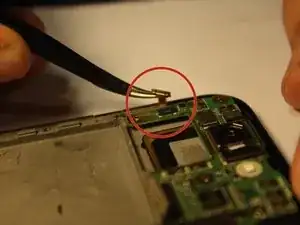

    • Disconnect all wires and bands from microphone, SIM card port and side bottons

  5. ihNhUcRTmosoZsHC
    ihNhUcRTmosoZsHC
    eVNDCHPmgSVYOliW
    l4GRjhvg3hUnKC23

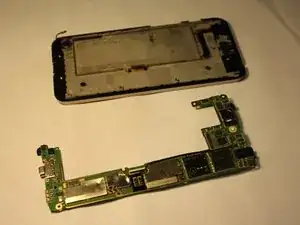

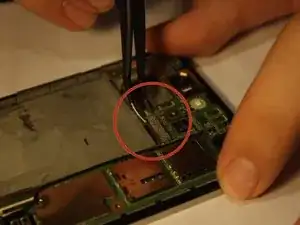

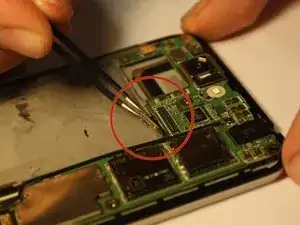

    • Disconnect remaining band from the logic board

    • Lift the logic board out of the phone

Abschluss

To reassemble your device, follow these instructions in reverse order.
