Asus Padfone 2 Camera Replacement

Geschrieben von: Erica
  • Kommentare: 0
Asus Padfone 2 Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

  1. XuAfQoeKum6cPnTu

    • Hold down the power button.

  2. MskNeDAZAlGP6SXS
    MskNeDAZAlGP6SXS
    nJDwUpRjBUxDbqFF
    SY3PcHSRfIjE4oSE

    • Use plastic opening tool to pry off the back cover of the phone.

  3. b4JHyduaHeKlNwNQ
    b4JHyduaHeKlNwNQ
    4ZkQWgS3JATpmHfv
    UbEMVlrHTg2e54G2

    • Remove the warning sticker that covers the battery plug and connecting cord.

    • Look for the widest gap on either side of the battery. Using the plastic opening tool carefully lift battery out.

    • The battery is held down with adhesive. Be careful not to damage battery or connecting cord.

    • Disconnect battery connecting cord using tweezers.

  4. NVSb6RigP1RaKVTP
    NVSb6RigP1RaKVTP
    YfAFdPBaFHmV4aMS
    DFNrkWDwHSZDYUek

    • Use T5 Torx screwdriver to remove 14 screws from internal back plate.

    • Use of magnetic pad will help with keeping track of screws.

    • Once screws are out, remove the plate.

  5. wEXmMQCPPikbwyMT
    wEXmMQCPPikbwyMT
    hwZKOqy4UHKJSSgk
    1wjphTSYpFLZB1Ij

    • Disconnect four plugs to the motherboard using tweezers.

    • Lift up green motherboard.

  6. SC3pSI2iY3NyxjNM
    SC3pSI2iY3NyxjNM
    dbGuWfjtNYQZkemo

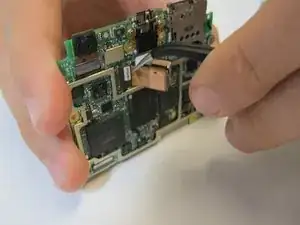

    • Remove camera from back of the motherboard with tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
