Asus Padfone X Mini Screen Replacement

Geschrieben von: Benjamin Trigg
  • Kommentare: 0
Asus Padfone X Mini Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. r1hQpkMkbIogPotE

    • With the phone facing down, look at the bottom right side corner and there should be a groove. Use a plastic opening tool and lift up to remove outside cover.

    • This is not the cover with the speaker attached.

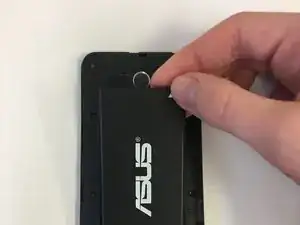

  2. xUFUl5KqCVkMnjMV

    • Lift the battery out from the top of the device.

  3. iHJ5gDaKSdLjeljo

    • Around the perimeter, there should be 10 2 mm T5 Torx screws. Take them out.

    • Remove the cover.

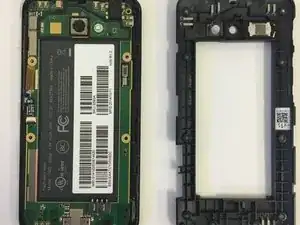

  4. HeVGGYeaTI2IVpYu

    • Turn the cover over.

    • The speaker is attached to the inside of the cover and to the right of the camera hole.

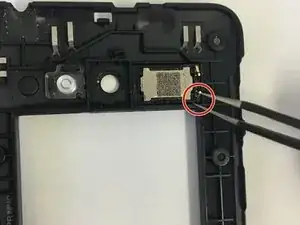

  5. xPjDN1ZgEWB2KCTq

    • Remove speaker with standard tweezers to minimize damage, and replace.

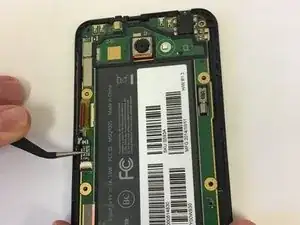

  6. 562Iq2unv5XUw5Vn

    • Detach the black connector on the left hand side of the motherboard.

    • Don't completely remove the black connector.

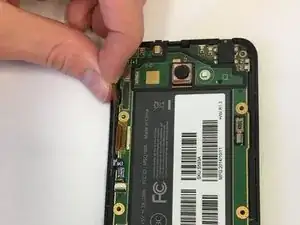

  7. fGjtC5NNHnT3mVj2

    • Disconnect silver connector from the motherboard. It is located on the left hand side above the black connector.

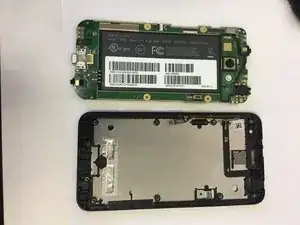

  8. MgONhPrNSYc2r5uA
    MgONhPrNSYc2r5uA

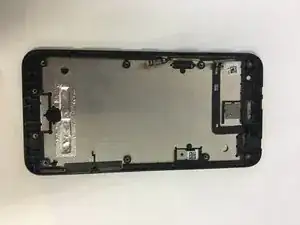

    sixvX5AwPGUITmcT

    • Remove motherboard and replace screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
