Asus Q200E-CT144H Fan Replacement

Geschrieben von: Kirsti Wattles
  • Kommentare: 1
Asus Q200E-CT144H Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

If you are experiencing issues with your Asus Q200E-CT144H and the overheating of your Central Processing Unit (CPU), use this guide to replace your laptop’s fan. Although the laptop fan can sometimes be irritating to listen to, it serves a great purpose for the laptop. This includes keeping the system cool and preventing the device from overheating. Computers tend to produce a lot of heat with all of the electricity moving throughout the circuits.

  1. yy4FbWT3giP6B5PG

    • To start, turn off the laptop and disconnect the power cable.

    • If the computer is on or plugged in, it could cause electric shock.

    • Flip the laptop over so the back panel is visible.

  2. TMvkRILDXrx5VEqB

    • Remove the 9 screws holding the cover in place by taking a Phillips #00 Screwdriver and turning it counterclockwise.

    Our device did not come with screws in the back panel.

    Kirsti Wattles -

  3. KaeGHHBEG25kICv5
    KaeGHHBEG25kICv5
    wlYOZEYouhENvWbf

    • Use an iFixit opening tool to lift the back cover and remove it from the laptop.

  4. QUAtuAiDCmhmasHU
    QUAtuAiDCmhmasHU
    XeLAqiiY6vUrA5HC

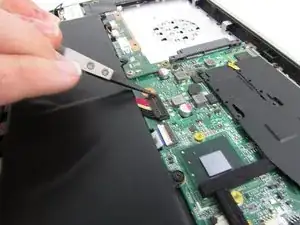

    • Remove the battery connector by using tweezers to lift up on it.

  5. bIfNSJwYZbKTokqI
    bIfNSJwYZbKTokqI
    fbDnLjQsy2Lg5Imw

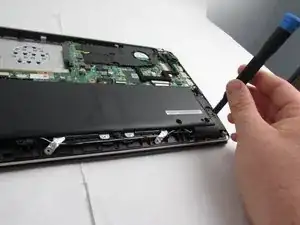

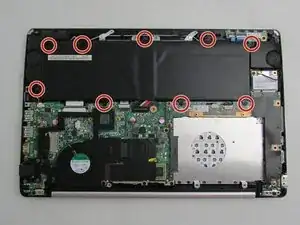

    • Remove the nine Phillips #00 screws that hold the battery in place.

    • There is one 9.2mm screw, four 4.7mm screws, and four 5.7mm screws.

  6. 5UpFdwqWFfRfggv1
    5UpFdwqWFfRfggv1
    K6RgXUvfrHjAAggC

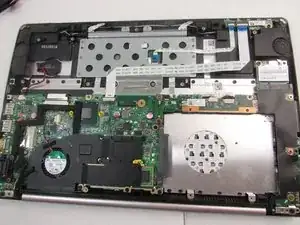

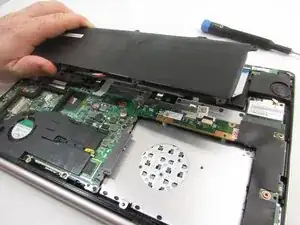

    • Remove the battery from the battery bay.

  7. hovrQEskKfjYoA6V

    • Remove the five 4.6mm Phillips #00 screws holding the fan in place.

  8. D4kAGv5AGudpVPZS

    • Disconnect the power bus with tweezers.

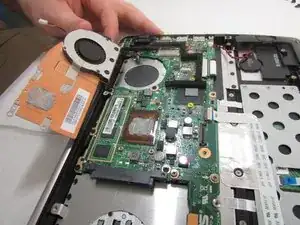

  9. XJFcktsQa1kHG2HA

    • Lift and remove the fan from its housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
