Asus Q200E-CT144H Wi-Fi Card Replacement

Geschrieben von: Kirsti Wattles
  • Kommentare: 1
Asus Q200E-CT144H Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

9 - 10 Minuten

Einleitung

The Wi-Fi Card is responsible for transmitting data the same way a cell phone or radio does, through radio waves. Your Wi-Fi Card should be able to pick up a signal from the nearby radios using its tiny antennas. If you are having problems with connecting to the internet using your Wi-Fi Card also known as the Local Area Network Card (LAN), you can use this guide to replace your Wi-Fi Card.

  1. yy4FbWT3giP6B5PG

    • To start, turn off the laptop and disconnect the power cable.

    • If the computer is on or plugged in, it could cause electric shock.

    • Flip the laptop over so the back panel is visible.

  2. TMvkRILDXrx5VEqB

    • Remove the 9 screws holding the cover in place by taking a Phillips #00 Screwdriver and turning it counterclockwise.

    Our device did not come with screws in the back panel.

    Kirsti Wattles -

  3. KaeGHHBEG25kICv5
    KaeGHHBEG25kICv5
    wlYOZEYouhENvWbf

    • Use an iFixit opening tool to lift the back cover and remove it from the laptop.

  4. QUAtuAiDCmhmasHU
    QUAtuAiDCmhmasHU
    XeLAqiiY6vUrA5HC

    • Remove the battery connector by using tweezers to lift up on it.

  5. bIfNSJwYZbKTokqI
    bIfNSJwYZbKTokqI
    fbDnLjQsy2Lg5Imw

    • Remove the nine Phillips #00 screws that hold the battery in place.

    • There is one 9.2mm screw, four 4.7mm screws, and four 5.7mm screws.

  6. 5UpFdwqWFfRfggv1
    5UpFdwqWFfRfggv1
    K6RgXUvfrHjAAggC

    • Remove the battery from the battery bay.

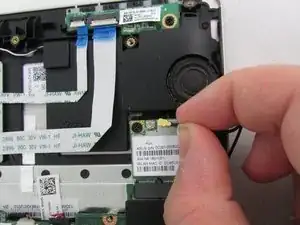

  7. dWFXWnfs1KWoGbSC

    • Use tweezers or your fingers to disconnect the Wi-Fi card's power connector.

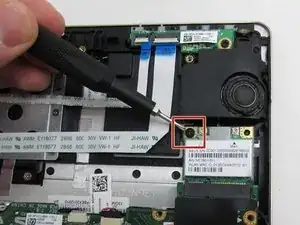

  8. PilVyQqXFbEr5QBg

    • Unscrew the single 4.7mm screw with a Phillips #00 screwdriver.

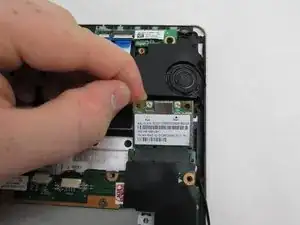

  9. 2qCDhteXPbLWSEHq

    • Remove the card from its bay.

Abschluss

To reassemble your device, follow these instructions in reverse order.
