Einleitung
How to remove the battery and replace it.
Werkzeuge
-
-

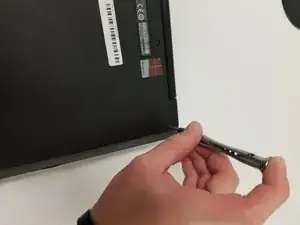

Place laptop upside down
-

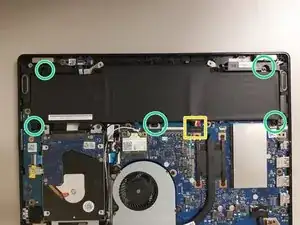

Remove the cover by unscrewing the 10 screws highlighted in the picture
-
Use PH0 bit to remove the 1cm black screws
-
-
-
Unscrew the 5, 5mm screws with the PH0 bit
-

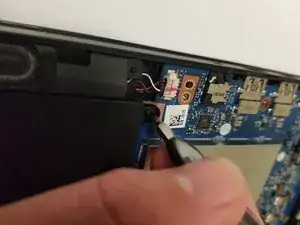

Lift up the battery connector, indicated in yellow
-
Remove the battery by lifting it in upward motion pulling it towards
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
