Asus Q302UA-BHI5T20 Fan and Heat Sink Replacement

Geschrieben von: Arthur Sperotto
  • Kommentare: 0
Asus Q302UA-BHI5T20 Fan and Heat Sink Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide will help you replace the fan and heat sink component of your laptop. You may want to do this if you notice the fan stop working. Be sure to follow this guide in a well lit room on a flat surface. Acquire the necessary tools before hand and have a cup or a magnetic plate to keep track of all the screws.

  1. V5Ffn5hpDqjeKEyQ
    V5Ffn5hpDqjeKEyQ

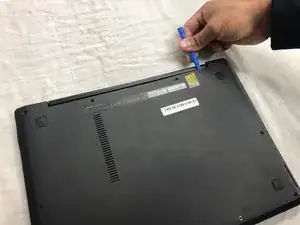

    EU6ju4FBRJrDferw

    • Unscrew the ten 10mm Phillips #0 screws.

    • Use the plastic opening tool along the side of the laptop to pry open.

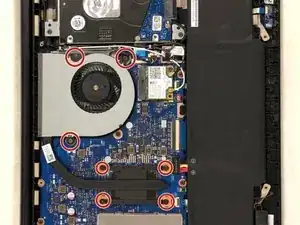

  2. uyPXu3gWSAaeRmIL
    uyPXu3gWSAaeRmIL

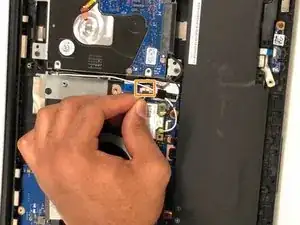

    65oOQg2fmkgCFX3W

    • Remove the seven 4mm Phillips #0 screws.

    • Gently pull the connector.

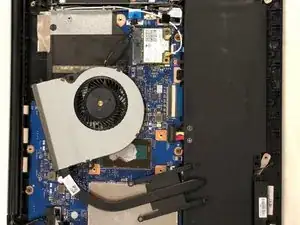

  3. WmOEbOnHNNnOlMOV

    • Lift the heat sink and fan assembly, and you are done!

    • There maybe a little resistance to being pulled up since the heat sink is attached to the CPU with thermal paste

Abschluss

To reassemble your device, follow these instructions in reverse order.
