Asus Q304UA Motherboard Replacement

Geschrieben von: Ben Meinhart

Kommentare: 5

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Werkzeuge

Pro Tech Toolkit

Schritt 1

Remove ten Phillips #0 screws that secure the plastic bottom cover to the chassis.
Six 9.6 mm screws
Four 4.6 mm screws
Throughout this guide, keep careful track of your screws so that each one goes back where it came from during reassembly. Installing a screw in the wrong place can cause permanent damage.

Schritt 2

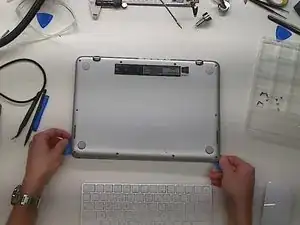

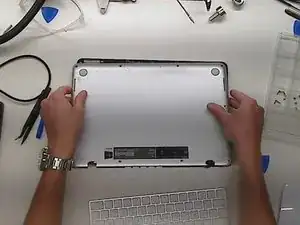

Use a plastic pry tool to get in-between the bottom cover and the lower case assembly.
Be careful not separate the cover too violently or you will risk breaking the plastic clips that are on the bottom cover.

Schritt 3

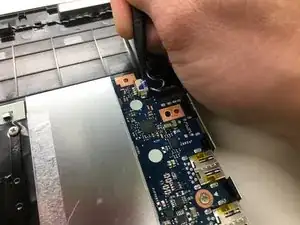

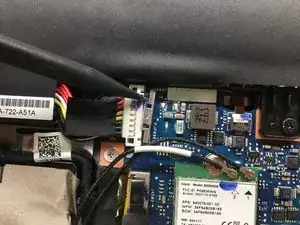

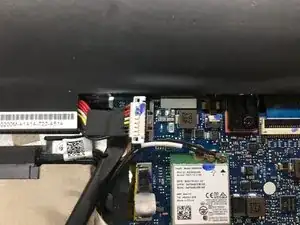

Push metal bracket away from battery connector.
Use a spudger to push the battery connection straight up.
If you pry too hard, or attempt to disconnect the battery with the metal bracket still in place, you risk pulling the connector off of the motherboard.
Make sure the computer is powered off before removing the battery.

If you pull the without moving that metal bracket, you could damage the connections on the motherboard and likely rip a few solder pads. It almost happened to me when creating this guide.

Ben Meinhart - 02/07/18

Schritt 4

Remove the Phillips #0 screws that secure the battery to the lower case assembly
Three 4.7 mm screws.

Schritt 5

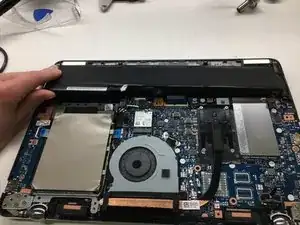

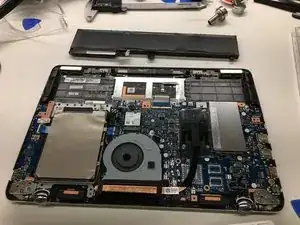

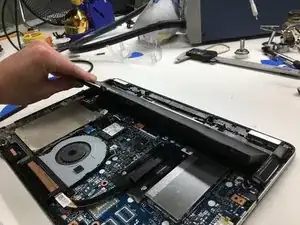

Tilt battery up from the side closest to the motherboard
Pull the battery out of the chassis away from the two plastic retainers near the front of the laptop.

Schritt 6

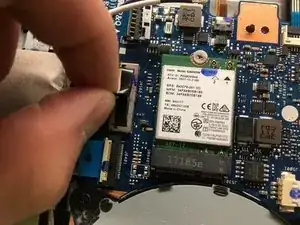

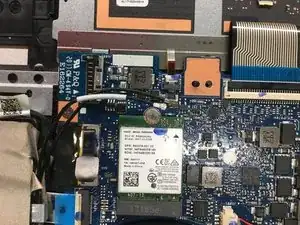

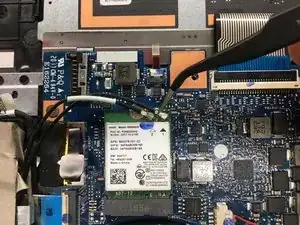

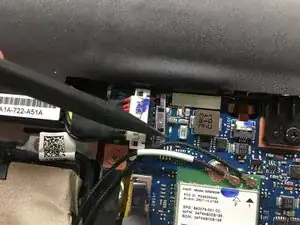

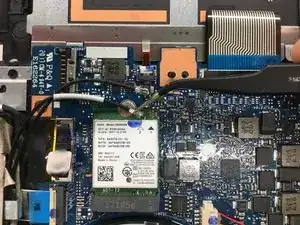

Disconnect the Wifi/Bluetooth RF cables from the wireless card.
Pull the RF cables by the metal connector, not by the rubber shielding. This avoids damaging the connector and the cable.

Schritt 7

Pull straight up to disconnect the SATA combo cable from the motherboard.

Schritt 8

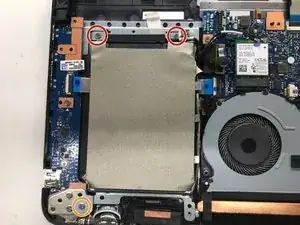

Remove three Phillips #0 that secure the hard drive bracket to the chassis, of the following lengths:
Two 2.3 mm screws
One 5.6 mm screw

Schritt 9

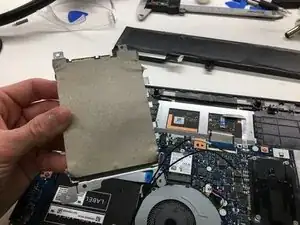

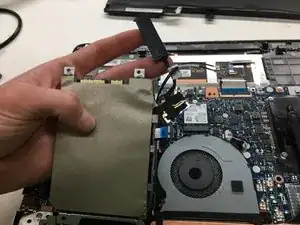

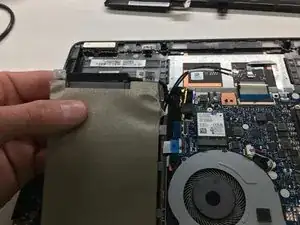

Tilt the drive up slightly by the connector
Remove the SATA combo connector

Schritt 10

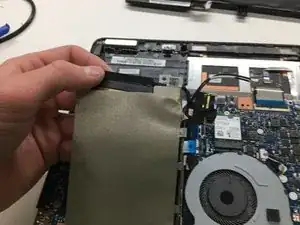

De-route the SATA and RF cables from the side of the drive bay.

Schritt 12

Pull straight up to disconnect the display cable

Schritt 13

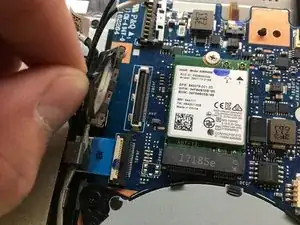

Use a Spudger to push the left speaker cable out the connector.
Do not pull up on this connector. Only pull directly away from the connector.

Schritt 14

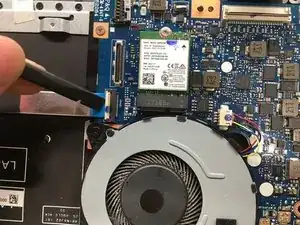

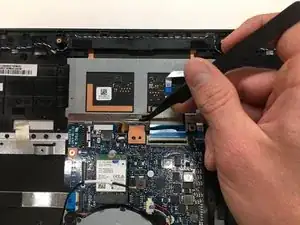

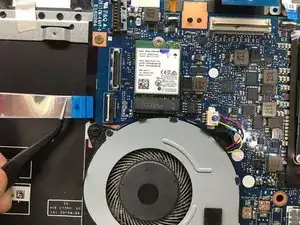

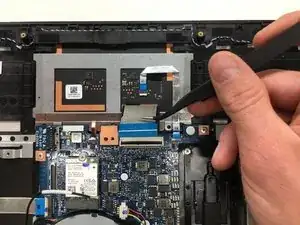

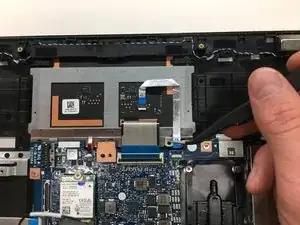

Use a spudger to flip up the retaining flap on the trackpad ribbon cable ZIP socket.
Be sure you are prying up on the hinged retaining flap, not the socket itself.
Use tweezers to pull the ribbon cable straight out of the ZIF socket.

Schritt 15

Use the tip of a spudger to flip cup the retaining flap on the keyboard ribbon cable ZIF socket.
Be sure you are prying up on the hinged retaining flap, not the socket itself.
Use tweezers to remove the ribbon cable from the socket.

Schritt 16

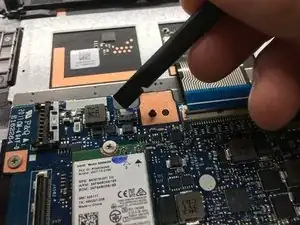

Use a spudger to flip up the retaining flap on the ribbon cable ZIP socket.
Be sure you are prying up on the hinged retaining flap, not the socket itself.
Use tweezers pull the ribbon cable out of the ZIF socket.

Can you identify what this connector runs to? I am looking for the connector for the backlight.

Gabriel Mascarenas - 17/06/20

Schritt 17

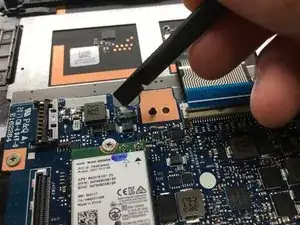

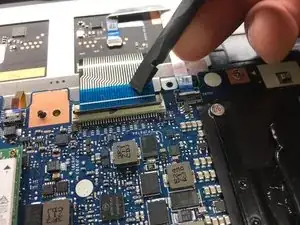

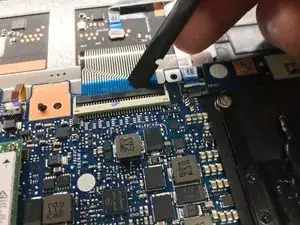

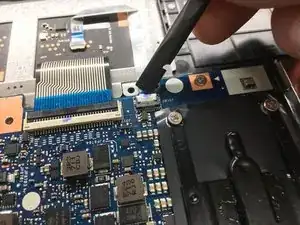

Use the tip of a spudger to flip up the retaining flap on the daughterboard ribbon cable ZIF socket on the motherboard.
Be sure you are prying up on the hinged retaining flap, not the socket itself.
Use tweezers to pull the ribbon cable away from the ZIF socket

Schritt 18

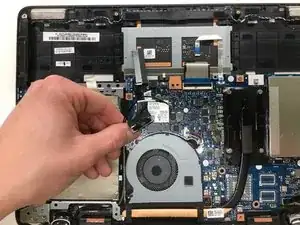

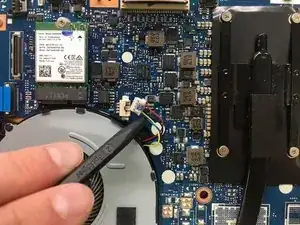

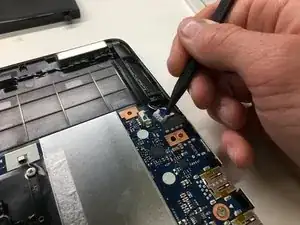

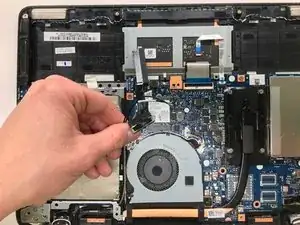

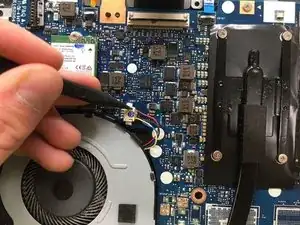

Use the tip of spudger to push out the fan connector.
Do not pull up on the connector, only pull out so to not damage the connector.

Schritt 19

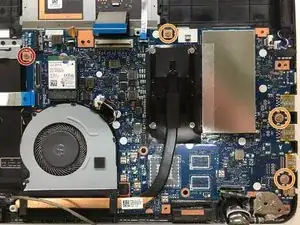

Remove the four Phillips screws securing the logic board to the lower case assembly.
One 2.3 mm screw
Three 3.7 mm screws

Schritt 20

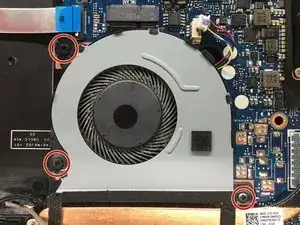

Remove the three Phillips screws connecting the fan to the lower case assembly.
Three 4.6 mm screws

Schritt 21

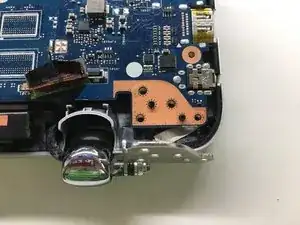

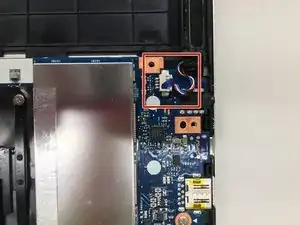

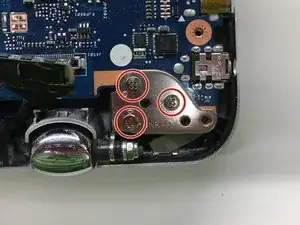

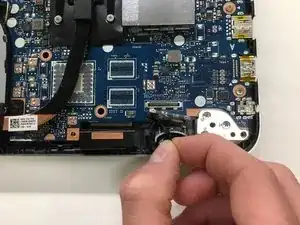

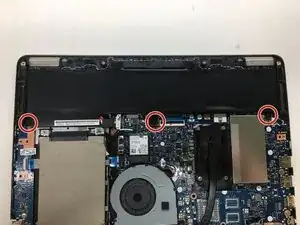

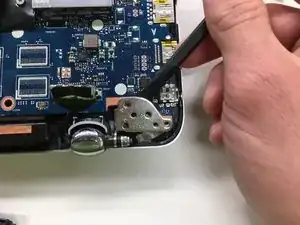

Remove the three Phillips screws securing the left hinge to the corner of the motherboard and lower case assembly.
Three 5.6 mm screws
Take a plastic pry tool and open the hinge about 75º-85º
You may have to open the laptop over the edge of a table and open the display in order to open the hinge.

Schritt 22

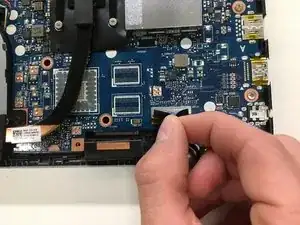

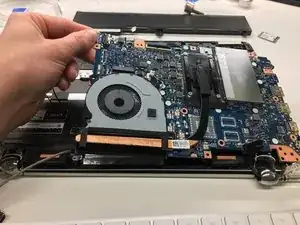

Pull up on the corner of the motherboard and remove from the laptop.
Be sure to clear all of the plastic standoffs that go through the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
