Asus Q500A Battery Replacement

Geschrieben von: cameron
  • Kommentare: 0
Asus Q500A Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will demonstrate how to replace the battery in the Asus Q500A.

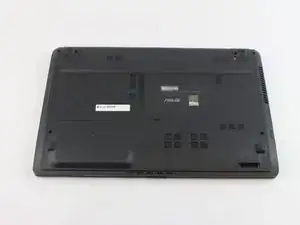

  1. RJRI5qFMPuOvYD4V

    • Flip device onto backside.

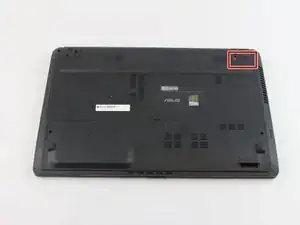

  2. LRDNxGbJqdrZDRpX

    • Locate the two sliding locks.

    • Slide the sliding lock 1 to the right to unlock it .

    • There should be a red marker to indicate that it is unlocked. This lock will stay unlocked until slid back into the locked position.

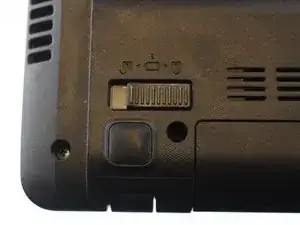

  3. rKYrPju1UjZ5SxQY

    • Slide the sliding lock 2 to the left to unlock it.

    • There will not be any indicator that it is unlocked. This lock will relock if you do not continue to push it to the left.

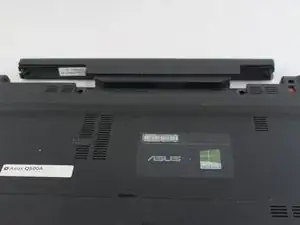

  4. fmdCKqMgfAUmdkKQ

    • While the first and second lock are unlocked, slide the battery out to remove it.

    • When reinserting the replacement battery, make sure to slide sliding lock 1 back into the locked position. Otherwise the battery may come loose.

Abschluss

To reassemble your device, follow these instructions in reverse order.
