Asus Q500A Hard Drive Replacement

Geschrieben von: cameron
  • Kommentare: 0
Asus Q500A Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will demonstrate how to replace the hard drive on the Asus Q500A.

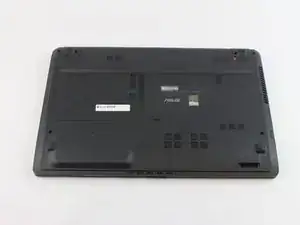

  1. ZsfiAROClZwRBigf

    • Flip device onto backside

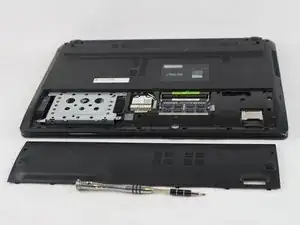

  2. F6d5n2rjq3tKjf1Z

    • Use a J0 screwdriver bit to remove both screws on the back-plate, found at the bottom of device.

    • Remove back-plate.

    • Note: Use prying tool if your having issues lifting back-plate.

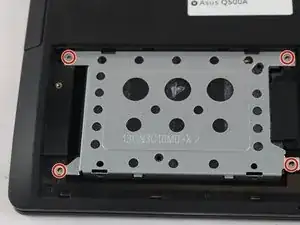

  3. kQ3j5MYJyJw3vwTY
    kQ3j5MYJyJw3vwTY
    DyB5KIATtJKuabZ2

    • Remove 4 screws from the metal hard-drive case. There will be one in each corner.

    • Remove the hard-drive case from the device.

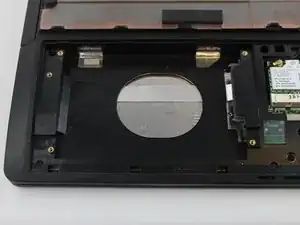

  4. lXJgGDvQf2AUCJYB

    • Remove the hard-drive. It will be connected to the integrated sata-port in the device.

    • Place hard-drive into slot and connect to the integrated sata port.

    • Place hard drive case back on top of the new hard-drive.

    • Screw in the four screws on the hard-drive case.

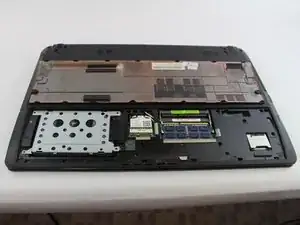

  6. GYTrVqEoeDn1a5LL

    • Place back-plate back on device.

    • Screw in the 2 screws on the back of the plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
