This guide will properly demonstrate how to replace the RAM in the Asus Q500A laptop effectively.
-
-
Flip device upside-down.
-

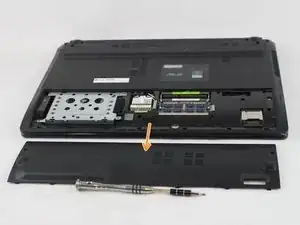

Remove back-plate by unscrewing the two screws on either side of the back-plate.
-

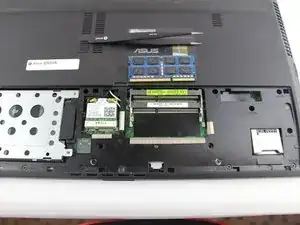

Remove the plastic cover.
-
-
-

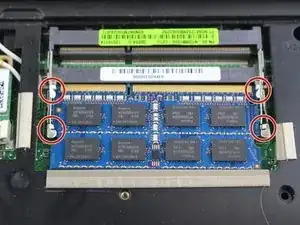

There are two metal brackets holding each ram stick in.
-
To unlock the RAM, you'll need to remove the metal brackets. To do this, carefully push out the brackets.
-
-
-
Now simply remove the ram by pulling it out using a set of pliers to be safe and careful not to damage the ram.
-
-
-

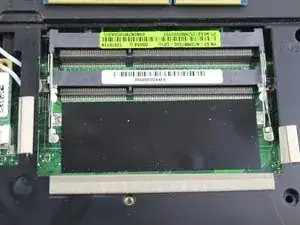

To insert the ram line up the ram stick and the slot.
-
Next you will have to push the ram down until it snaps into place.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
