Asus Q501LA-BBI6T03 Back Panel Replacement

Geschrieben von: Tanner
  • Kommentare: 2
Asus Q501LA-BBI6T03 Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide will walk users through the disassembly of their Asus device.

  1. giPt1IrVrWkE6OuA

    • Ensure the laptop is powered down before continuing.

    • Use a Phillips #0 screwdriver to remove the ten 3mm Phillips head screws on the base of the laptop.

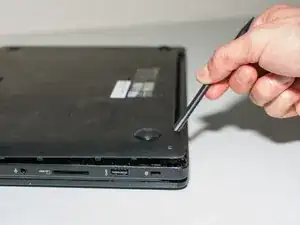

  2. ttDHIrGGSWeuO3bh

    • Use the spudger to pry open the rear cover at either hinge.

  3. BAUSiFtptlQUBgGU
    BAUSiFtptlQUBgGU

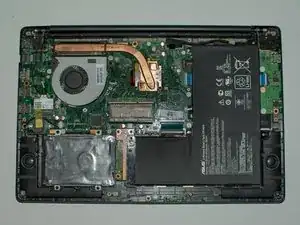

    fML2U1pqmHxacMWk

    • Grab the cover with your fingers and gently lift it away from the board.

    • Be careful not to break any tabs on the cover when lifting it off.

    This step took me about an hour of careful prying. I didn’t break any real tabs, but tiny rectangular chips of plastic still came off. It felt like the cover had been sealed to the board, so I couldn’t just lift it off.

    Suzanne Yee -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tanner

Mitglied seit: 26/01/17

276 Reputation

Ein Kommentar

I got one of these model, how much RAM is the maximum amount supported?

Cesar Aguilar -
