Asus Q501LA-BBI6T03 Battery Replacement

Geschrieben von: Kyle Nagao
  • Kommentare: 2
Asus Q501LA-BBI6T03 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your laptop is having issues with batter life, your batter may be malfunctioning. In this guide, we will show you how to replace the battery.

  1. giPt1IrVrWkE6OuA

    • Ensure the laptop is powered down before continuing.

    • Use a Phillips #0 screwdriver to remove the ten 3mm Phillips head screws on the base of the laptop.

  2. ttDHIrGGSWeuO3bh

    • Use the spudger to pry open the rear cover at either hinge.

  3. BAUSiFtptlQUBgGU
    BAUSiFtptlQUBgGU
    fML2U1pqmHxacMWk

    • Grab the cover with your fingers and gently lift it away from the board.

    • Be careful not to break any tabs on the cover when lifting it off.

    This step took me about an hour of careful prying. I didn’t break any real tabs, but tiny rectangular chips of plastic still came off. It felt like the cover had been sealed to the board, so I couldn’t just lift it off.

    Suzanne Yee -

  4. updLSlvSZYXpNEvy

    • Remove the five silver 4mm Phillips #0 screws holding the battery to the laptop.

  5. ZEIBbNMBjpn35fZA

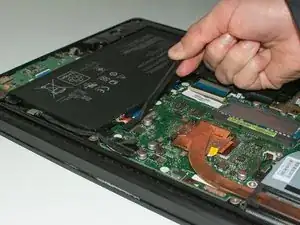

    • Using the spudger, carefully remove the power cable connecting the battery to the rest of the laptop.

  6. trKX2Fuwnom33AVC

    • Once the screws and cable are removed, carefully lift the battery from the laptop.

    Thank You very much

    Danny Winsor -

Abschluss

To reassemble your device, follow these instructions in reverse order.
