Asus Q501LA-BBI6T03 RAM Replacement

Geschrieben von: Tanner
  • Kommentare: 1
Asus Q501LA-BBI6T03 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 8 Minuten

Einleitung

If your RAM needs to be replaced then this guide will show you how to properly do so.

  1. giPt1IrVrWkE6OuA

    • Ensure the laptop is powered down before continuing.

    • Use a Phillips #0 screwdriver to remove the ten 3mm Phillips head screws on the base of the laptop.

  2. ttDHIrGGSWeuO3bh

    • Use the spudger to pry open the rear cover at either hinge.

  3. BAUSiFtptlQUBgGU
    BAUSiFtptlQUBgGU
    fML2U1pqmHxacMWk

    • Grab the cover with your fingers and gently lift it away from the board.

    • Be careful not to break any tabs on the cover when lifting it off.

    This step took me about an hour of careful prying. I didn’t break any real tabs, but tiny rectangular chips of plastic still came off. It felt like the cover had been sealed to the board, so I couldn’t just lift it off.

    Suzanne Yee -

  4. opjDuoFlkFPNhZuZ
    opjDuoFlkFPNhZuZ
    dt5ryoET3qnVHGpy

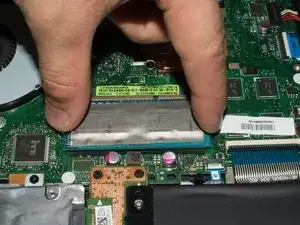

    • Press down the metal tabs on both sides of the RAM.

    • The tabs are spring loaded and the RAM will pop up immediately.

Abschluss

To reassemble your device, follow these instructions in reverse order.
