Asus Q501LA-BBI6T03 Wireless Card Replacement

Geschrieben von: Aodhan Arias
  • Kommentare: 3
Asus Q501LA-BBI6T03 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

If you are having difficulties connecting to the internet and find that your wireless card is affecting your connectivity, this guide will help you in replacing the wireless-n card.

  1. giPt1IrVrWkE6OuA

    • Ensure the laptop is powered down before continuing.

    • Use a Phillips #0 screwdriver to remove the ten 3mm Phillips head screws on the base of the laptop.

  2. ttDHIrGGSWeuO3bh

    • Use the spudger to pry open the rear cover at either hinge.

  3. BAUSiFtptlQUBgGU
    BAUSiFtptlQUBgGU
    fML2U1pqmHxacMWk

    • Grab the cover with your fingers and gently lift it away from the board.

    • Be careful not to break any tabs on the cover when lifting it off.

    This step took me about an hour of careful prying. I didn’t break any real tabs, but tiny rectangular chips of plastic still came off. It felt like the cover had been sealed to the board, so I couldn’t just lift it off.

    Suzanne Yee -

  4. iFuDhIOb5inJJmOx

    • Pull up on the two metal tabs attached to the card .

    • Unscrew the single 2mm Phillips #0 screw in the top right hand corner.

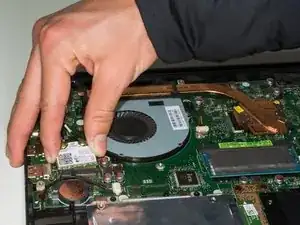

  5. yYjD3kgTGhkPfJoD

    • Gently slide the card out of its connection ports.

    • Make sure to pull straight out of the connection ports to avoid bending of the card or port.

Abschluss

Once finished, follow prerequisite guide in reverse order to finish your repair.

Tinte & Feder

Aodhan Arias

Mitglied seit: 26/01/17

288 Reputation

2 Kommentare

My Asus Q501L laptop cannot start the wifi card despite having updated the driver and restarting. Troubleshooting returns error Code 10. Did you experience or know how to resolve this problem?

Tony Ly -

Hey there Tony,

I would recommend first checking the status of the hardware device first. You can view a device's status from the device's Properties in Device Manager. It is possible that the driver is corrupted even though it is “updated” fully and could be causing the issue. If so, remove and reinstall the drivers for the device. It could also be that the WiFi card has a hardware issue. There isn’t really anything I know of that you can do besides just replacing it if that’s the case. If it’s new it might be under warrantee but who knows. Unfortunately Code 10 errors are pretty vague and don’t really give a lot of information. Hope this helps.

Aodhan Arias -
