Asus Q504UA-BHI5T13 Display Assembly Replacement

Geschrieben von: Jacob Fritsch
  • Kommentare: 5
Asus Q504UA-BHI5T13 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 40 Minuten

Einleitung

The display of the Asus Q504UA-BHI5T13 device can be replaced when the laptop is no longer displaying a clear image. The repair is done by removing the display assembly. This guide will show the instructions on how to remove the back panel, hinges, and two connectors holding the Display Assembly.

  1. Cg5B3PBDMbnKwFjh

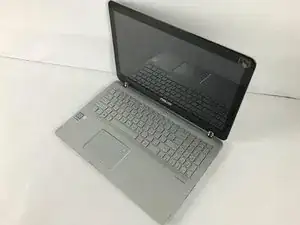

    • Ensure that the laptop is off so you do not shock yourself.

    Thank you very much for the walk through video, it helped me a lot.

    Coastie228 -

  2. AmIMaJBaDmK51eXT

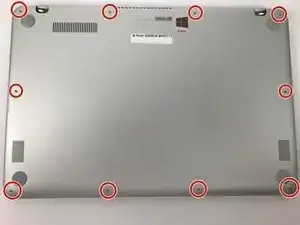

    • Use the T5 Torx screwdriver to remove the ten 1mm screws located around the back cover.

  3. BJZSugOitIjaoT4d

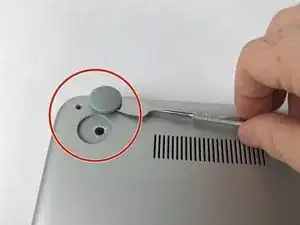

    • Remove the two rubber pads nearest to you using the metal spudger.

    The two pads on the hinge side.

    vendor02 -

  4. JAEAxNYhZXXQ2Uj5

    • Use the Phillips #0 screwdriver to remove the two 4mm screws that are under the rubber pads.

  5. TAYwSQPuZBRJJnJF

    • Insert any of the plastic opening tools into the seam to separate the back cover (it is recommended to start at the corner of the hinges). If you did it right, then the cover should pop off.

    • Be careful as you may damage the tabs.

    Another good place to start is at the USB port near the SD card slott. Work toward the hinge first, then back down the short side. There are 5 strong tabs on each short side, and several weaker tabs on the front and between the hinges. The tabs are attached to the bottom. Once one short side is nearly free and the front seam is not totally closed, then try pushing the bottom toward the free short side (at most 1/2 mm) which can make the other tabs easier to “pop”.

    vendor02 -

  6. LVMykWQNpPLiC6iV

    • Use the Phillips #0 screwdriver to remove the six 5.00 mm screws connected to the hinges of the display assembly.

  7. JOG1lCDdrAh2ldOZ
    JOG1lCDdrAh2ldOZ
    23Z5OPQrYZvUB53f
    YJ5uDR6fhMscJbLO

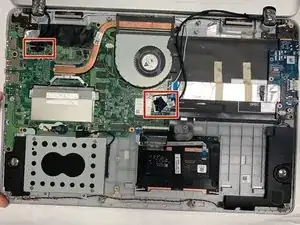

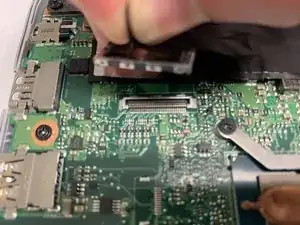

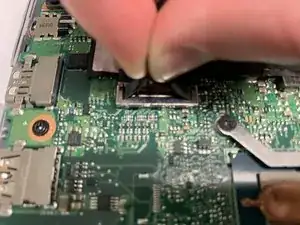

    • Remove the two connectors with your hands, as shown.

  8. beXPav1vQ4CTxIbX
    beXPav1vQ4CTxIbX
    3vAdVQHILoohSsSR

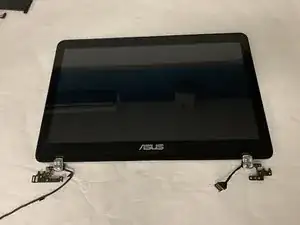

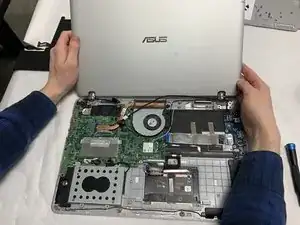

    • Hold the display assembly with two hands and pull upwards to remove.

    You forgot to mention the tape and screws holding the Screen cables to the chassis. The tape keeps the longer one in place along the backside of the chassis above the battery. Then I found it easier to remove the fan screw to get the cable out from under the hold downs on the fan assembly. Other than that great job!

    Bakut3n -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jacob Fritsch

Mitglied seit: 04/11/19

337 Reputation

Ein Kommentar

Is this call soemthing else. I cannot find the complete assembly. My hinges are broken off and the front black bottom is split so I would like to have the entire assembly so that I could replace it all.

smej -
