Asus Q504UA-BHI5T13 Motherboard Replacement

Geschrieben von: Jacob Fritsch
  • Kommentare: 7
Asus Q504UA-BHI5T13 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

23

Zeitaufwand

50 Minuten - 2 Stunden

Einleitung

this is a step-by-step guide to repair your computer that has issue with longer booting, but other auxiliary components are still functional. It is important that all components disassemble in this repair are organized neatly to ensure there are no missed parts from the Motherboard. Make sure you pay attention throughout this repair of the motherboard you will need to remove most major internal components.

  1. Cg5B3PBDMbnKwFjh

    • Ensure that the laptop is off so you do not shock yourself.

    Thank you very much for the walk through video, it helped me a lot.

    Coastie228 -

  2. AmIMaJBaDmK51eXT

    • Use the T5 Torx screwdriver to remove the ten 1mm screws located around the back cover.

  3. BJZSugOitIjaoT4d

    • Remove the two rubber pads nearest to you using the metal spudger.

    The two pads on the hinge side.

    vendor02 -

  4. JAEAxNYhZXXQ2Uj5

    • Use the Phillips #0 screwdriver to remove the two 4mm screws that are under the rubber pads.

  5. TAYwSQPuZBRJJnJF

    • Insert any of the plastic opening tools into the seam to separate the back cover (it is recommended to start at the corner of the hinges). If you did it right, then the cover should pop off.

    • Be careful as you may damage the tabs.

    Another good place to start is at the USB port near the SD card slott. Work toward the hinge first, then back down the short side. There are 5 strong tabs on each short side, and several weaker tabs on the front and between the hinges. The tabs are attached to the bottom. Once one short side is nearly free and the front seam is not totally closed, then try pushing the bottom toward the free short side (at most 1/2 mm) which can make the other tabs easier to “pop”.

    vendor02 -

  6. jZS5AoQf5vrZIvMi

    • Once the back cover is removed, have the laptop facing upside down with the hinges facing toward you.

  7. tWHr1GxCQlitvZ1d

    • Use the Phillips #0 screwdriver to remove the five 4mm screws around the battery.

  8. EoRTNtud3f1gQ1rI
    EoRTNtud3f1gQ1rI
    O1YGLdIySSmeNksc

    • Use the small plastic opening tool to remove the ZIF Connector on the right side of the battery.

  9. Yr4mUnHR6ZpBISDr
    Yr4mUnHR6ZpBISDr
    ysTbSJiYBScEbqVZ

    • Remove the battery from the device.

  10. Ho2ydCsYKbDLPjCe

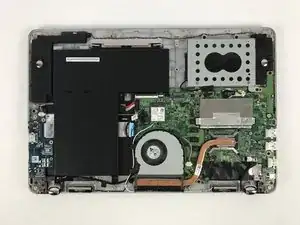

    • Once the back cover is removed, have the laptop facing upside down with the hinges facing nearest to you.

  11. PWUCDn4JNuB13GRm

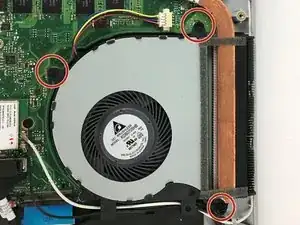

    • Using a Phillips #0 screwdriver, remove the three black 4mm screws located around the heat sink fan.

  12. DeiQpWN5Xx6SAwXM

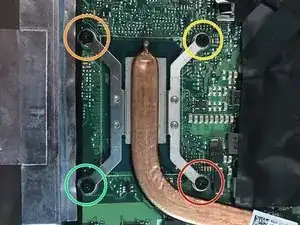

    • Using the same screwdriver, remove the four 4mm black screws around the copper lining

    • First remove the screw in the red circle.

    • Then remove the screw in the orange circle.

    • Next remove the screw in the yellow circle.

    • Finally, remove the screw in the green circle.

    • For this step, it helps to remove the screws in this order to prevent damage to the heat sink.

  13. 5XWjcsllpKHypN1X
    5XWjcsllpKHypN1X
    IynQsbIDjvSALfWq

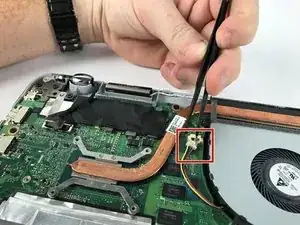

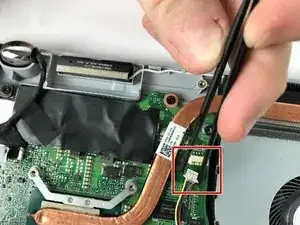

    • Use a pair of tweezers to pull and disconnect the cable located to the right of the heat sink fan.

    • Take caution when removing the cable. Damaging the cable will stop the part from working.

  14. alZxBZa1tvRCYALf

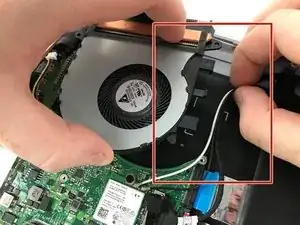

    • Carefully unravel the cables (two black and one white) to the left of the heat sink fan.

  15. XHuBjxNyEnbtBbAx

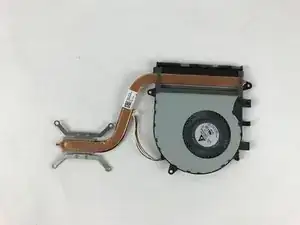

    • Remove the heat sink from the device.

  16. jsomWhSBpGwYeAJL

    • Once the back cover is removed, have the laptop facing upside down with the hinges facing toward you.

    Some conventions say to gently disconnect the battery cable from the circuit board before working with other cables.

    vendor02 -

    Notice the space and socket for M.2 SSD (42mm or 80mm) between the HDD and the battery! (Screw needed.)

    vendor02 -

  17. kxVK5e2wTdUwoLoe

    • Use the Phillips #0 screwdriver to remove the eight 4mm screws around the hard drive casing (located next to the Right [R] speaker).

    • Start off with the four black outer screws so that the casing can be released from the laptop unit.

    • The next sequence of screws to remove are the four silver screws.

    You should disconnect the data cable from the mb and pull the whole cage & drive assembly before you take out the silver screws or detach the cable from the drive to make it easier to insert or remove the drive.

    Cory Daehn -

  18. 1UZNhWhtqNZua3Wb

    • Remove the cover.

  19. PbJYUEg3VZlGYgaN
    PbJYUEg3VZlGYgaN
    CiR5TBjEvGSrJanN

    • Lift the hard drive and disconnect the hard drive sliding connector.

    • Be careful when removing the connector from the hard drive, as damaging that cable could cause damage to the hard drive.

  20. bfgrtDn4vyPXftOZ

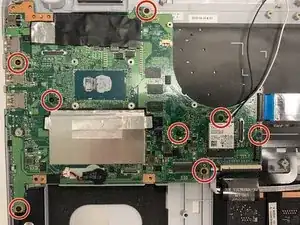

    • Use the Phillips #0 screwdriver to remove the remaining eight 4.0 mm screws.

  21. SoRnLSFAh2KQRWkh
    SoRnLSFAh2KQRWkh
    WCoOUwkY4tE5Rhpf

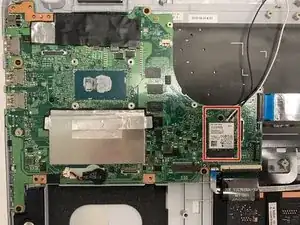

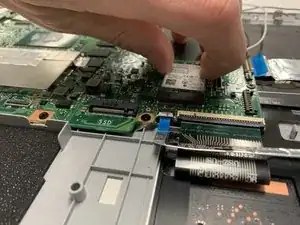

    • Remove the wifi card by hand, as shown.

  22. bKMhJSQqp1tDTdEV
    bKMhJSQqp1tDTdEV
    snorqATStQfhhg5s
    MBYIUHLmX3SUaJH5

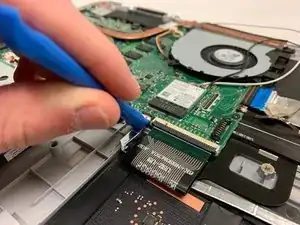

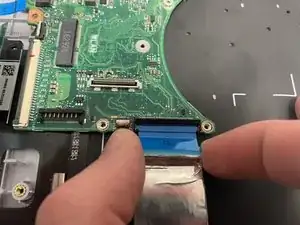

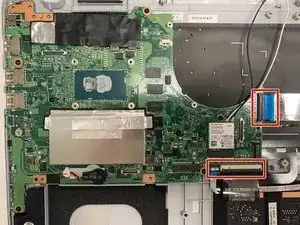

    • Use the small plastic opening tool to remove the three ZIF Connectors.

  23. vkLp1O34fW2UKwPa
    vkLp1O34fW2UKwPa
    tcXZp3kjGqeDnyKD
    rXGFLJwjg2q5Tqwk

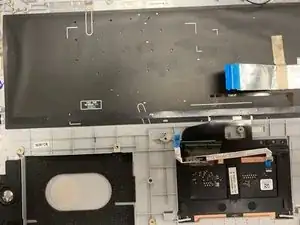

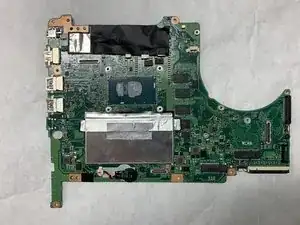

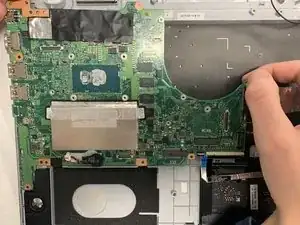

    • Pull up on two corners and pull upwards to remove the Motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jacob Fritsch

Mitglied seit: 04/11/19

337 Reputation

Ein Kommentar

Is there a replaceable ram stick on the other side of the motherboard? It looks like there is only one slot on the top side.

David Reagan -
