Asus Q504UA-BHI5T13 Touch-pad Replacement

Geschrieben von: Jacob Fritsch
  • Kommentare: 3
Asus Q504UA-BHI5T13 Touch-pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This repair would be needed if the laptop is no longer reacting to touch input, missing clicks, or if either mouse button is not functional. When removing the wires that connect the touch-pad to the motherboard be careful to use a plastic opening tool to protect against damage.

  1. Cg5B3PBDMbnKwFjh

    • Ensure that the laptop is off so you do not shock yourself.

    Thank you very much for the walk through video, it helped me a lot.

    Coastie228 -

  2. AmIMaJBaDmK51eXT

    • Use the T5 Torx screwdriver to remove the ten 1mm screws located around the back cover.

  3. BJZSugOitIjaoT4d

    • Remove the two rubber pads nearest to you using the metal spudger.

    The two pads on the hinge side.

    vendor02 -

  4. JAEAxNYhZXXQ2Uj5

    • Use the Phillips #0 screwdriver to remove the two 4mm screws that are under the rubber pads.

  5. TAYwSQPuZBRJJnJF

    • Insert any of the plastic opening tools into the seam to separate the back cover (it is recommended to start at the corner of the hinges). If you did it right, then the cover should pop off.

    • Be careful as you may damage the tabs.

    Another good place to start is at the USB port near the SD card slott. Work toward the hinge first, then back down the short side. There are 5 strong tabs on each short side, and several weaker tabs on the front and between the hinges. The tabs are attached to the bottom. Once one short side is nearly free and the front seam is not totally closed, then try pushing the bottom toward the free short side (at most 1/2 mm) which can make the other tabs easier to “pop”.

    vendor02 -

  6. jZS5AoQf5vrZIvMi

    • Once the back cover is removed, have the laptop facing upside down with the hinges facing toward you.

  7. tWHr1GxCQlitvZ1d

    • Use the Phillips #0 screwdriver to remove the five 4mm screws around the battery.

  8. EoRTNtud3f1gQ1rI
    EoRTNtud3f1gQ1rI
    O1YGLdIySSmeNksc

    • Use the small plastic opening tool to remove the ZIF Connector on the right side of the battery.

  9. Yr4mUnHR6ZpBISDr
    Yr4mUnHR6ZpBISDr
    ysTbSJiYBScEbqVZ

    • Remove the battery from the device.

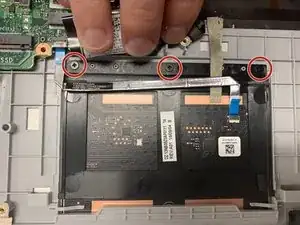

  10. 1ONvdHpEDMAdpECI

    • Pull the large data ribbon near the touch-pad out of the way with your hands.

    • Use the Phillips #0 screwdriver to remove the three 3.0 mm screws connecting the touch-pad to the device.

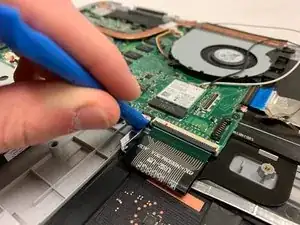

  11. ifpXUekOQSTgTLt3
    ifpXUekOQSTgTLt3
    TOgfUsK3evU16vGp

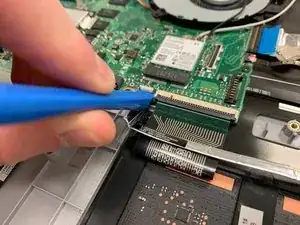

    • Use the small plastic opening tool to remove the ZIF Connector on the left side of the touch-pad.

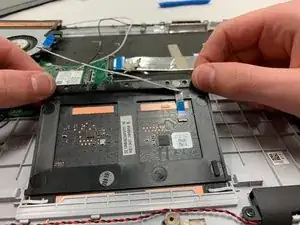

  12. GNhSUh4ckLL6faxD
    GNhSUh4ckLL6faxD
    nFCYGZhqoD1ccqXh

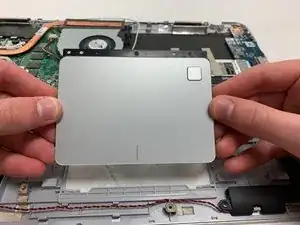

    • Pry the end closest to the display up with your fingers and pull the touch-pad out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
