Asus Q525U Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Does your Asus Q525U laptop frequently make strange grinding or ticking sounds? If it does, here is a detailed guide to help fix the issues by replacing the hard drive.

Before beginning this repair, power off your laptop and disconnect from the power adapter.

  1. qFCsJY5HksiNIXxg
    qFCsJY5HksiNIXxg
    HeNCxiv3DtaOSYGh
    rp5hRbQANdbfPXZ1

    • Begin by powering off the device and flipping the device over.

    • Carefully remove the two longer 9.5 mm screws on the corners with a Phillips #1 screwdriver.

    • Remove the eight 7.5 mm Phillips #1 screws on the back of the device.

  2. pFr5BVkB2NqONLWj
    pFr5BVkB2NqONLWj
    DWf4OYttSPD6s2eL
    G31ZsNYBjZbyNY2x

    • Use an opening pick to separate the back cover from the device.

    • For easiest removal, begin by prying at one of the front corners and sliding the tool under the cover in a counter-clockwise motion (to the left) toward the laptop hinge.

  3. QDkLCnHV1GGZMTld
    QDkLCnHV1GGZMTld
    sZex2HYDPySIFird
    Vlntap4MYQmkSZwQ

    • Once the cover has been separated from the device, carefully lift the back cover off the device (begin by lifting from the front of the cover first).

    • The back cover should be easily removable, allowing full access to all of the internal components.

  4. SMPxfjYmTXbay3e3

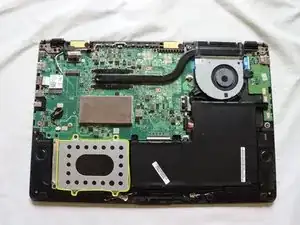

    • The hard drive is located to the left of the battery and below the motherboard.

  5. MLOqEbXmyJJNhZ6J
    MLOqEbXmyJJNhZ6J
    1aZBpwR2VgTMvK6h

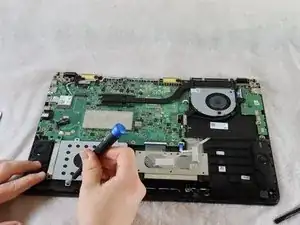

    • Remove the two 4 mm Phillips #1 screws which are holding the hard drive cover in place.

  6. u6bA16NOOM3fJBZf
    u6bA16NOOM3fJBZf
    Jw4xyISvicGHx1Sp

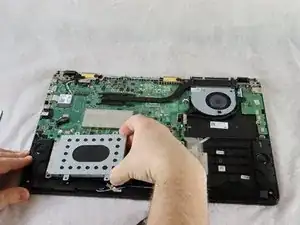

    • The hard drive cover is now easily accessible.

    • Lift the cover off, exposing the hard drive underneath [this laptop is missing its hard drive].

    • If replacing the hard drive, lift it up on the right side slightly and pull it from the connecter on the left.

Abschluss

To reassemble your device, follow these instructions in reverse order.
