Einleitung

If your laptop will not load multiple pages or applications at the same time, it takes a long time to load any webpages, or the laptop overall runs very slow, the RAM may need to be replaced. In this guide, we will show you how to replace the RAM.

  1. iIIgNoyPKW35BrCg
    iIIgNoyPKW35BrCg
    3xyQa4NIrKrxcvpa
    • Use a T4 Torx screwdriver head to remove the ten 4mm Torx head screws on the bottom of the laptop.

  2. HjFot2yFeLX3ZkWq
    HjFot2yFeLX3ZkWq
    yep2JdaM4JQeCbVR
    • Use an opening tool to pry open the rear cover. Lift the cover off and away from the board.

  3. ZkWjoNGBZxPvptFW
    ZkWjoNGBZxPvptFW
    kC26xMlfMgMymsVF
    • Use a Phillips #0 screwdriver head to remove the three black 7mm Phillips head screws that hold the battery in place.

  4. Iv2qHZ5jEqPVBEiA
    Iv2qHZ5jEqPVBEiA
    cip2hnXxmIMmv6Xy
    • Once the screws have been removed, gently lift the battery out.

  5. DOnD6wpDJJ4VGCBF
    DOnD6wpDJJ4VGCBF
    odjLInfWRcsMqBn3
    hqjBI4vBJ3xeJZq3

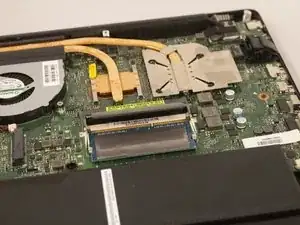

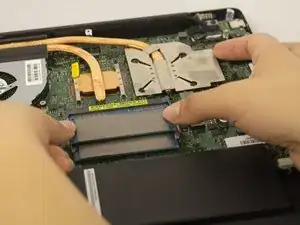

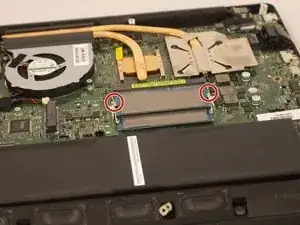

    • Push both metal tabs away from each other on each side of the RAM farthest from battery so that the RAM will pop up.

  6. AkQdg4XGtHdcEwN2
    • Pull out first RAM chip.

  7. AAYwCPvfIKOhtSRh

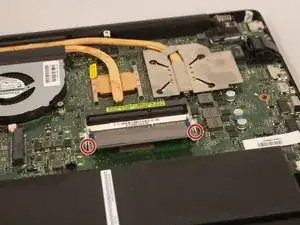

    • Push both metal tabs away from each other on each side of the RAM closest to the battery so that the second RAM will pop up.

  8. GE5eW3BZxyEARBQ4
    GE5eW3BZxyEARBQ4
    EexPH5SeIGCTIC11

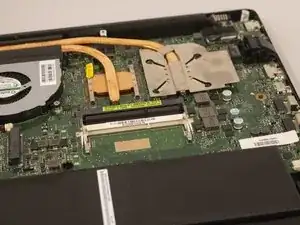

    • Pull out second RAM chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
