Asus Q551L Screen Replacement

Geschrieben von: Colleen Ford
  • Kommentare: 1
Asus Q551L Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 Minuten

Einleitung

This guide is intended to show how to remove a damaged screen from the laptop. Reversing the steps will describe the steps needed to replace the laptop with a new screen.

  1. 4BCAFKdCNIbDQQms
    4BCAFKdCNIbDQQms
    C3yoUTQFUrRJJkVm

    • Unscrew the 10 screws around the edge of the back panel. Eight of the screws are 0.0793mm T5 , two of them are 0.0793 JIS #0.

  2. ZxFfIQKmVfohMvIV

    • Use the plastic opening tool to pry the back panel off the base of the laptop.

  3. IOSyIxXd1kYpEqmg
    IOSyIxXd1kYpEqmg
    xRhZhQweVd2O6XCl

    • Unscrew the four screws to remove the battery.

  4. j2pMjHrytXQbmtgZ
    j2pMjHrytXQbmtgZ
    CHHXmoLxvu6cZErr

    • Un-clip both wire clips on the upper and right side of the battery.

    • Lift the battery out of the device.

    In addition to instructions here, the manufacturer instructed to boot computer once battery is removed boot up using ac power. This might only apply to Macs. Power down and install battery. Let the battery drain. Shut down. Then charge the computer for12 hours to fully activate the lithium ion to reach full capacit. Also drain battery at least three times to reach maximum capacity.

    Tindara Certo -

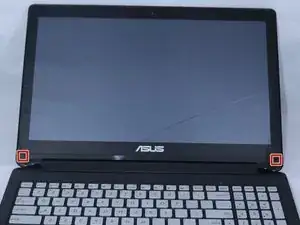

  5. 33BNfCBmrkmPs6ll
    33BNfCBmrkmPs6ll
    PsJmBJCya2JQB4Ko

    • Use the metal spudger to gently lift the two plastic squares off the screen.

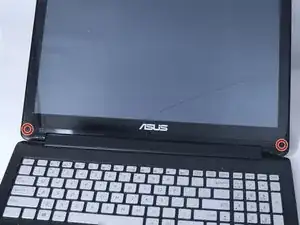

  6. WrM1T23Q5mhpJPdI
    WrM1T23Q5mhpJPdI
    FpP1kIY6GGJWYDyY

    • Unscrew the two PH0 screws and set them aside.

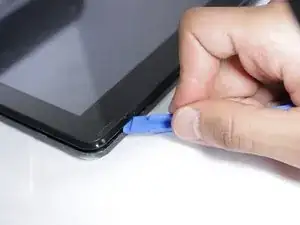

  7. IZZhOExKQUxdltgM

    • Use the plastic opening tool to pry the front edges of the screen off of the back.

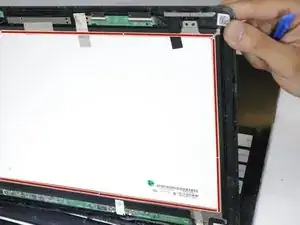

  8. WEloZJIbOULyLCyV

    • Take off the tapes.

    • Gently pry the LCD from the front frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
