Asus Q552UB-BHI7T12 Disk Drive Replacement

Geschrieben von: Alexander Boettcher
  • Kommentare: 0
Asus Q552UB-BHI7T12 Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Be sure is it not the disk that is faulty before replacing the disk drive. If you are having anyother problems with this device check the troubleshooting page here.

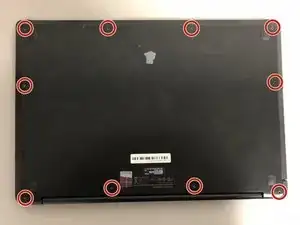

  1. IFbt6GxUMHAPqOYv
    IFbt6GxUMHAPqOYv
    mwj1f4bRDsKkgiFB

    • Start by removing the 10 screws on the back of the laptop with a Phillips head 1 screw driver.

    • Remove back cover.

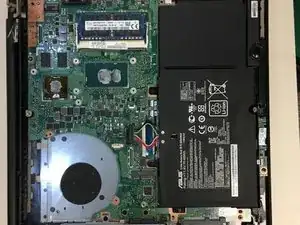

  2. wKStvJjRJJJUiKvQ

    • the battery must be removed so there is no power running to the disk drive. Follow the battery replacement guide here.

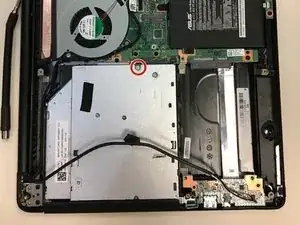

  3. UG2MZt43NmQ3luNN

    • Unscrew the one screw on the disk drive with a Philips head screw driver 1.

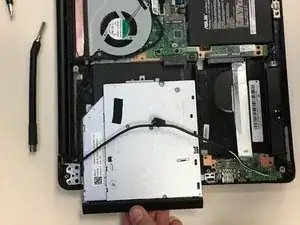

  4. iVG6UBcqgmBUnLux
    iVG6UBcqgmBUnLux
    FSS3KQhO26cJEYGl

    • Slowly slide out the disk drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
