Asus R510LA-RS71 Motherboard Replacement

Locate the locking mechanisms that keep the battery in place and slide them outwards.

The right mechanism will lock in place, the left one you will need to hold in place.

Use your right thumb to slide the right side of the battery out, then the left side.

Remove the bottom left and right 12.7mm screws using a JIS 00 screwdriver.

Slide back and remove the protective plating on the back of the laptop.

Again with the JIS 00, unscrew the three 5.7mm screws holding the hard drive in place. These can be found on small brackets on the four corners of the drive.

Slide the hard drive to the left, then remove it by lifting it from the compartment it is resting in.

Using the JIS 00 screwdriver, remove the bottom left/right 12.7mm screws located on the back of the laptop.

Slide and lift off the bottom cover.

There should be an exposed area located on the right center of the bottom of the revealed compartment. Move the silver brackets holding the RAM to the side. The RAM will pop out of its hold.

Remove the RAM

With the Battery, Hard Drive, and RAM removed, the laptop should look like this

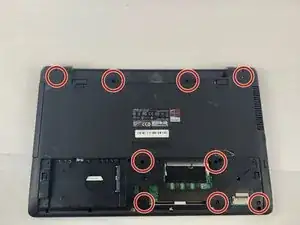

Using the JIS 00 screwdriver, remove the 4.7mm screws that are highlighted, there are two in the battery compartment, two on the outsides of the battery locks, and five around the RAM.

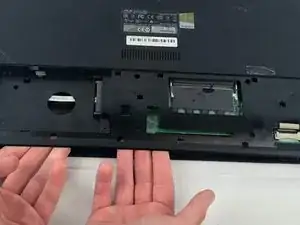

With all screws removed, slide fingers in the crease, separating the keyboard from the bottom of the computer

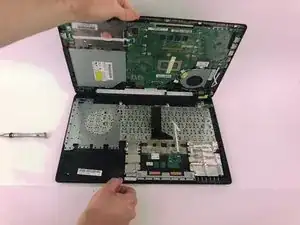

With the laptop opened, as shown in the second picture, the bottom is the keyboard cover, it should be completely detached, take it and set it aside

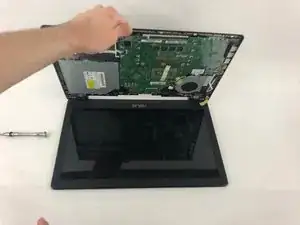

Flip the laptop over, so it is sitting as it would if you were using it

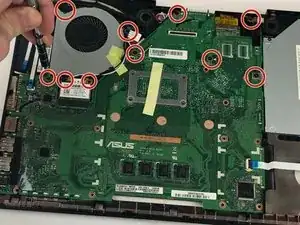

Using the JIS 00 screwdriver, remove all of the 5.7 mm screws remaining in the motherboard and around the fan

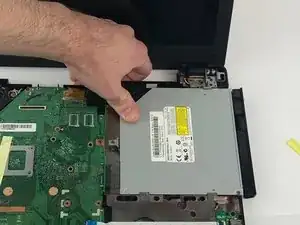

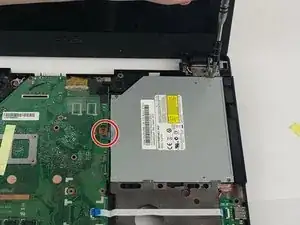

Ensure the screw keeping the disc drive in place is removed, then slide the drive out

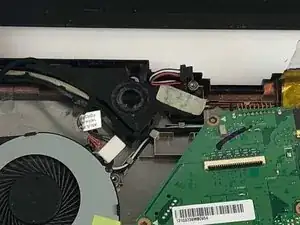

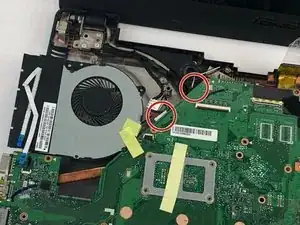

Disconnect the chip under the fan, connected to the motherboard (you should have removed the screws in step 3)

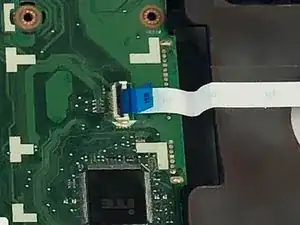

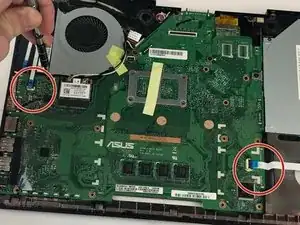

Remove the two blue and white ribbons

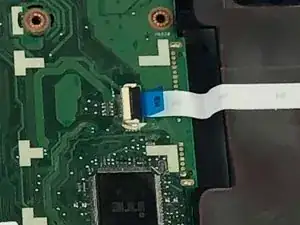

To disconnect them, flip the metal bracket that holds them in

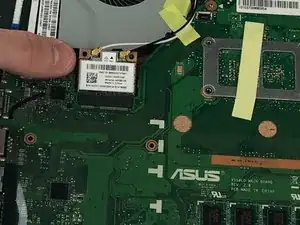

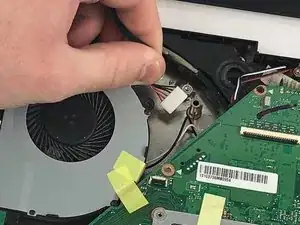

Remove the gold wire from its port by pulling back the tape, then slide it up and out

Remove the wires at the top left of the motherboard, they can just be pulled out

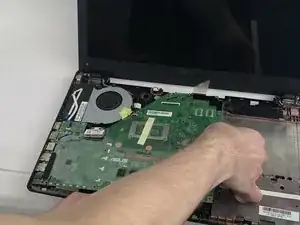

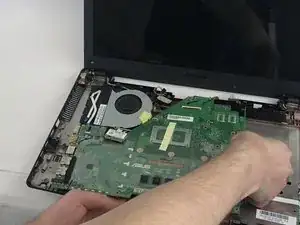

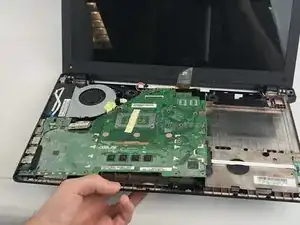

To remove the motherboard, stick your fingers through the area where the ram is inserted, lifting it up

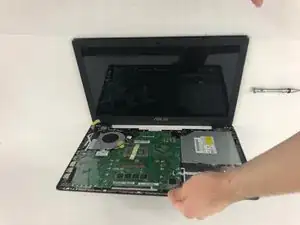

Then pull out to right at a slightly upwards angle

Some new motherboards are sold with a fan attached, if the replacement you have does not, then you will need to remove the fan from the current motherboard

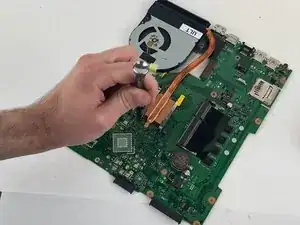

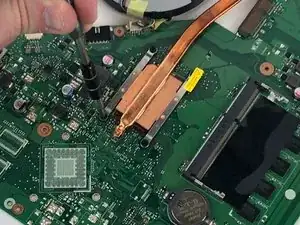

To do this, flip the motherboard over once it is removed from the laptop and remove the screws from the bracket holding it in place and remove it
