This guide demonstrates how to replace a broken hard drive in an ASUS laptop with a new one. This guide is shown using a solid-state drive (SSD) as a replacement, but a classic hard drive (HDD) will do.
Werkzeuge
Ersatzteile
-
-

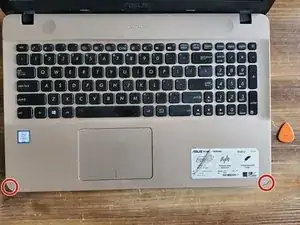

Flip the laptop over and open the case.
-

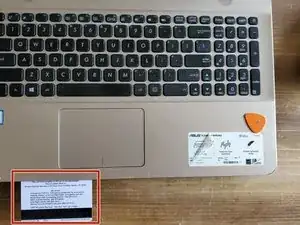

Use a plastic opening pick or card to pry at the seams between the plastic palm rests and the back cover.
-
Pry all around the case to release the plastic clips, but do not completely remove the palm rest as there are still cables connecting it to the case.
-
-
-
Using a spudger, gently pry open the locking mechanism on ZIF connectors connecting the keyboard and trackpad cables to the motherboard.
-
Once the locking tabs have been flipped up, slide the cables out from the connectors.
-

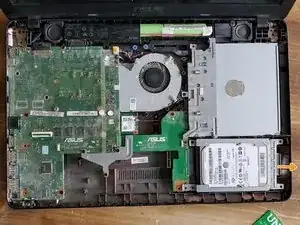

Remove the keyboard assembly.
-
-
-

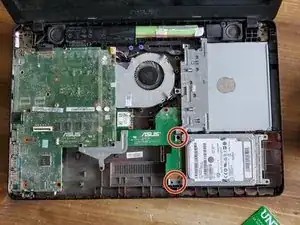

Remove the two screws holding the storage drive enclosure in place using a Phillips #0 screwdriver.
-
Use the lip of the enclosure to lightly pull the hard drive to the right, disengaging it from the rest of the computer.
-
-
-

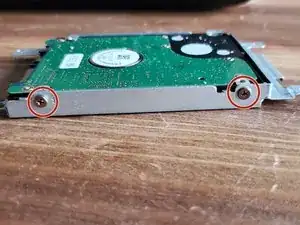

Remove the four screws securing the hard drive to the enclosure with a Phillips #0 screwdriver.
-

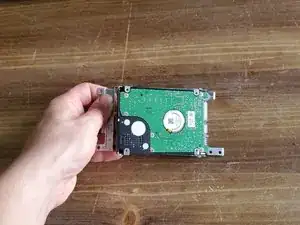

Gently remove the drive from the enclosure.
-
-
-

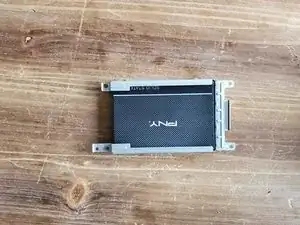

Insert your new storage drive (Solid State Drive shown here) into the enclosure and secure it with the screws used previously.
-
Insert the drive into the bay and slide it to the left to reconnect it to the motherboard.
-
Replace the two screws to hold the enclosure in place using a Phillips #0 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
