Einleitung
This guide is for replacing a broken of faulty keyboard.
Werkzeuge
-
-
Flip the laptop over so that the back panel is facing up.
-

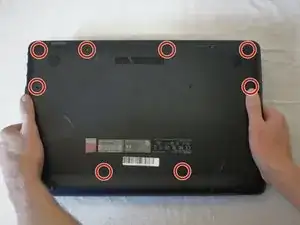

Carefully remove the eight 5.7mm screws on the back panel using a Phillips #1 screwdriver.
-
-
-
Turn the laptop upright and flip the screen open.
-

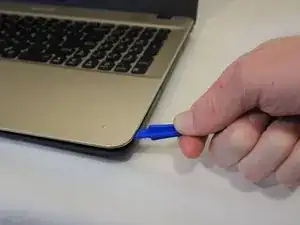

Using the plastic opening tool, gently pry the keyboard panel off of the base.
-
-
-

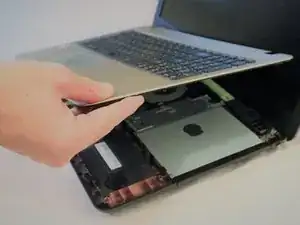

Gently raise the keyboard from the base enough to access the underside.
-
Gently pull up on the locking tab to release the ribbon cable. This should take no force to complete.
-
Remove the keyboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
