This guide is for the replacement or upgrade of the RAM card.

  1. 5iTmiIH5otPJBJLB
    5iTmiIH5otPJBJLB
    ExqlgbHSmqExlNZC
    IyF4NM53NXR6JFrA
    • Flip the laptop over so that the back panel is facing up.

    • Carefully remove the eight 5.7mm screws on the back panel using a Phillips #1 screwdriver.

  2. psbBMF6CjnNRLAIZ
    psbBMF6CjnNRLAIZ
    YDBIDNnYulcQwITN
    • Turn the laptop upright and flip the screen open.

    • Using the plastic opening tool, gently pry the keyboard panel off of the base.

  3. WGL6DwbymoUQGNAO
    WGL6DwbymoUQGNAO
    LBgxJKHFNe6aGjvA
    • Gently raise the keyboard from the base enough to access the underside.

    • Gently pull up on the locking tab to release the ribbon cable. This should take no force to complete.

    • Remove the keyboard.

  4. ix4KdlbOkSpfpRKL

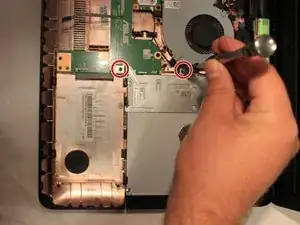

    • Remove the three 5.7 mm screws from the CD drive mounting points. Use a Phillips #1 screwdriver to remove the screws.

  5. hlteQYuIVmJcaGPD
    hlteQYuIVmJcaGPD
    C4WtHRGOkOIAYTn3

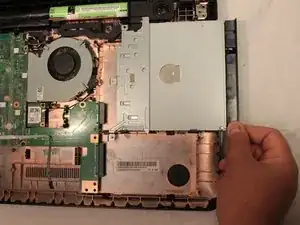

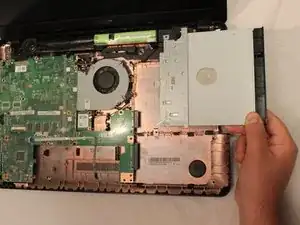

    • Gently slide the CD drive away and pull up to remove it from the computer.

  6. VJTqBbIGORcooU4m
    VJTqBbIGORcooU4m
    4d1IRq3NAWXpNMQN

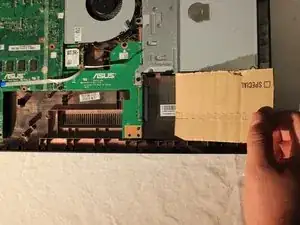

    • Locate the hard drive in the lower right hand corner in the computer. This device did not have a hard drive so a piece of cardboard was used as a substitute.

    • Remove the two 5.7 mm screws from the base. Use a Phillips #1 screwdriver to remove the screws. Lift up to remove the hard drive.

    Instructions forget to mention the top right screw in the first image. (The metal shielding is screwed into it.)

    Spun Blue -

  7. CTQRMo4CZuLJ4Huv

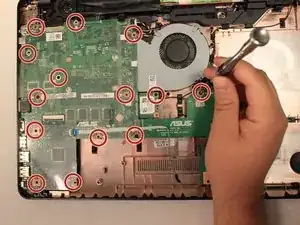

    • Remove all fourteen 4.3 mm screws from the motherboard. Use a Phillips #1 screwdriver to remove the screws.

  8. k3dCXscsICfqPsTQ
    k3dCXscsICfqPsTQ
    mbk1O46HKKG4wJGL
    XN16D1vOUmNeUvmH

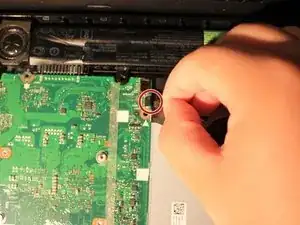

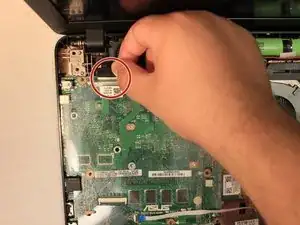

    • Unplug the three connections from the top of the motherboard.

    • Lift up at an angle to remove the motherboard from the computer. Take caution when lifting the areas where the USB ports are located. They are in small slots that exit the computer's main body. They will need to be slid through these slots to remove the motherboard.

  9. 3umNZG5LeBBy2s3r
    3umNZG5LeBBy2s3r
    hapmsxMPBwS63Whw
    oNidOerTIBKAKJWK

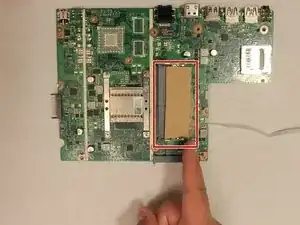

    • Locate the RAM slot on the underside of the motherboard. This device did not have a RAM card so a piece of cardboard was used as a substitute.

    • Replace the current card with the new RAM card.
