Einleitung

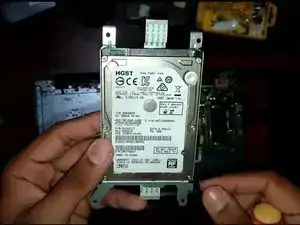

If you want faster memory (SSD) or want to increase the storage of your current Asus R558UQ-DM513D, follow this guide to replace your laptop’s current Hard Disk Drive with a new SSD/HDD.
Make sure to save your current Hard Drive data on another device before you begin.
Make sure you turn off and unplug the laptop before starting the procedure.
Werkzeuge
Ersatzteile
-
-

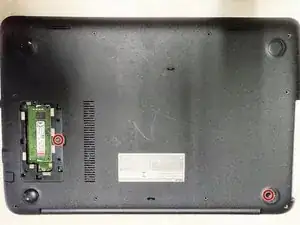

Using the Phillips #0 screwdriver, remove the single 5 mm screw and remove the RAM access panel.
-

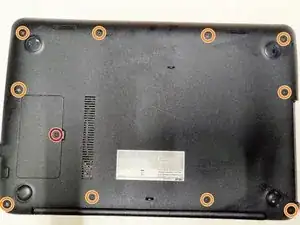

Remove the ten 5 mm screws using the same Phillips #0 screwdriver.
-
-
-

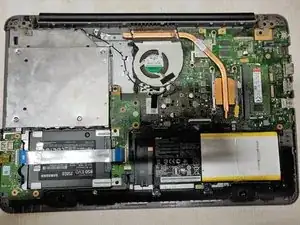

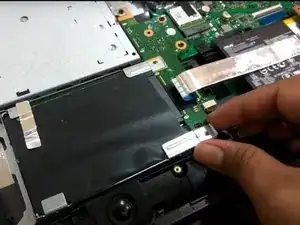

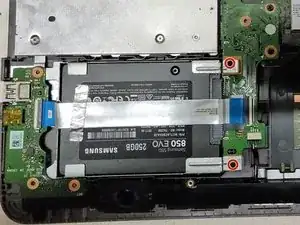

Gently take the left-side board containing the ports by simply sliding it in and taking it out while still connected to the wire.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
