Asus ROG G53SW-XT1 Hard Drive Replacement

Geschrieben von: Alexander Lovrien

Kommentare: 1

Asus ROG G53SW-XT1 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will demonstrate how to remove and replace the hard drive on your Asus ROG G53SW-XT1.

Werkzeuge

Schritt 1

Unplug the power cable and flip the computer over.

Schritt 2

Unlock the battery by pushing the switch to the right.

Schritt 3

Push and hold the left switch, then pull the battery out.

Schritt 4

Insert a spudger, or plastic opening tool, into these five slots and pry upwards to pop up the keyboard.

Schritt 5

Disconnect the keyboard ribbon cables from the motherboard.

Schritt 6

Insert your screwdriver into the locking mechanism and slide it to the left. This will unlock the hand rest and allow you to pull it free.

Schritt 8

Flip the laptop over and pull off the bottom cover.

Schritt 9

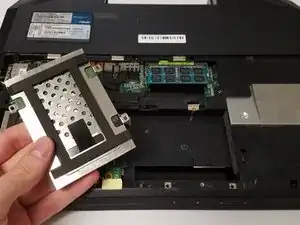

Place your fingers along the left edge of the hard drive cover, and slide it to the right, then lift up.

Schritt 10

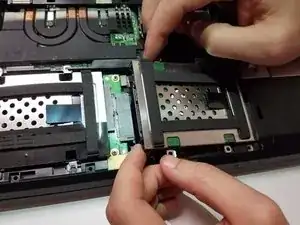

Remove the Hard Drive and case from the laptop.

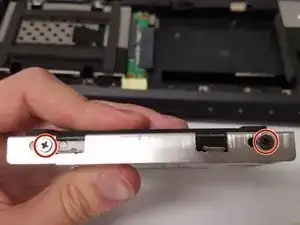

Remove the four Phillips #0 screws from the hard drive case.

Schritt 11

Slide the hard drive out of the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Ein Kommentar

Bottom cover holds only by 9 screws. You don’t need to remove 14 screws. All screws at the bottom with M2 5x7 label (do not remove two small screws. And one scre on the right in the middle without number on the metal plate). You don’t need to remove screw with M2 5x7 label on the right side, second from the corner.
