Asus ROG G53SW-XT1 Optical Drive Replacement

Geschrieben von: Bailey Herring
  • Kommentare: 0
Asus ROG G53SW-XT1 Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide will demonstrate how to replace the optical drive in the ASUS ROG G53SW-XT1.

  1. rd2evmsXdBANqOWU

    • Unplug the power cable and flip the computer over.

  2. KhFMrDEyfTNVwQCW

    • Unlock the battery by pushing the switch to the right.

  3. HjsVOWeLTGmMDp1d
    HjsVOWeLTGmMDp1d
    mYWjJxnCHjl356cX

    • Push and hold the left switch, then pull the battery out.

  4. PsvyLD2USYnJriNY
    PsvyLD2USYnJriNY
    ZWGyQoTnGRD3ZdZT
    uuhFn4YByHeqrEro

    • Insert a spudger, or plastic opening tool, into these five slots and pry upwards to pop up the keyboard.

  5. hLkwoha5DDvBSfWO
    hLkwoha5DDvBSfWO
    ihmJSNJEfON3aP1L
    rtiwFoZbF5aJA6Ng

    • Disconnect the keyboard ribbon cables from the motherboard.

  6. QWEoxCODP5LBp6j1
    QWEoxCODP5LBp6j1
    JxOxBsGUKqEhxLfm
    Z5FQRO3MPmYJrMHy

    • Insert your screwdriver into the locking mechanism and slide it to the left. This will unlock the hand rest and allow you to pull it free.

  7. VbAAIP3FysdvowpV

    • Remove the fourteen Phillips #0 screws.

  8. nv4OpWWwjSQlqE4g
    nv4OpWWwjSQlqE4g
    VUPfTBXn56ufFQXL

    • Flip the laptop over and pull off the bottom cover.

  9. QW1TUFrjWFaXkD6C

    • Remove the single 7mm Phillips #0 screw holding the hard drive in place.

  10. GKyFPYTNKNKV4crU
    GKyFPYTNKNKV4crU
    cO1IjBNTNHYRsvdd

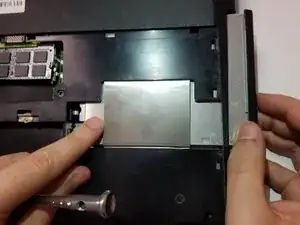

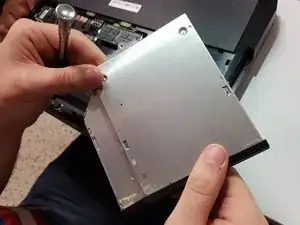

    • Slide the hard drive out of the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
