Asus ROG G55VW-DH71 Disk Drive Replacement

Geschrieben von: Savanna Stockman
  • Kommentare: 0
Asus ROG G55VW-DH71 Disk Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

This guide will aid in the replacement of a faulty disk drive, which will no longer read the disks that are placed in the device.

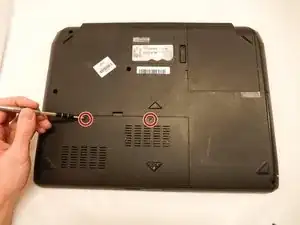

  1. BHsA6fX3kGkSFCid

    • Using the PH0 screwdriver remove the 2 3.6 mm screws.

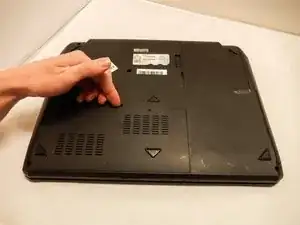

  2. DJaLGVwyMWAnSMMe

    • Lift and remove the back plate.

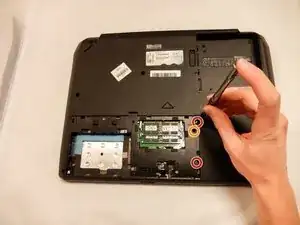

  3. t2hSdwJ3uGlcxO6D

    • Using the PH0 screwdriver remove the 2 4.6 mm screws.

    • Using the PH0 screwdriver remove the 6.6 mm screw.

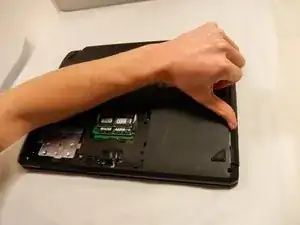

  4. 6FTPcuJnf6TjYAEH
    6FTPcuJnf6TjYAEH
    lTevTnB5VeQDbAxv

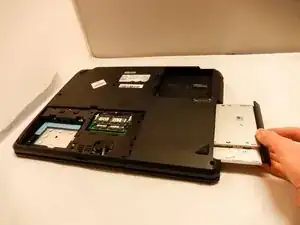

    • Pull out the disk drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
