Asus ROG G56JK CD Drive Replacement

Geschrieben von: Brandon Wells
  • Kommentare: 0
Asus ROG G56JK CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 - 30 Minuten

Einleitung

Replace a broken or messed up CD-Drive.

Before starting on this guide, unplug the laptop from its charger and turn the laptop off.

  1. mgg6FG1nQ4rbAF21
    mgg6FG1nQ4rbAF21
    eHBCdcsCLLEOZmRs

    • Push the slider to the opposite side, while pulling out the battery.

    • Remove the battery from the device.

  2. AbxvioQhFUw46LLx

    • Remove the 4 mm screw on the cover using a Phillips #0 screwdriver.

    • Remove the cover for the hard drive by pushing down and sliding it towards yourself.

  3. OrTqK1HLMXxa3Xvq

    • Slide the hard drive to left and remove it from the device.

  4. MDYvdjHgw6Hb2PFl

    • Unscrew the four 4mm screws using a Phillips #0 screwdriver.

  5. vxsWJOmmaEU6IwZx

    • Flip the computer right side up and start to lift the keyboard. The keyboard/back panel should come off.

    • Do not force the keyboard/back panel off. This could damage internal components and bend the keyboard.

  6. s46H4QHZQxjFsf1U

    • Using a Phillips #0 screwdriver, unscrew the four 4mm screws.

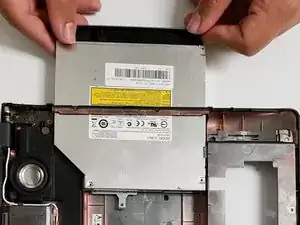

  7. KRf1KwtuYYbMKxPj

    • Gently pull the CD drive out of the side of the laptop and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
