Asus ROG G56JK Fan Replacement

Geschrieben von: Jonathan McNary
  • Kommentare: 0
Asus ROG G56JK Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 - 30 Minuten

Einleitung

Replace a broken or noisy fan.

Before starting on this guide, unplug the laptop from its charger and turn the laptop off.

  1. mgg6FG1nQ4rbAF21
    mgg6FG1nQ4rbAF21
    eHBCdcsCLLEOZmRs

    • Push the slider to the opposite side, while pulling out the battery.

    • Remove the battery from the device.

  2. AbxvioQhFUw46LLx

    • Remove the 4 mm screw on the cover using a Phillips #0 screwdriver.

    • Remove the cover for the hard drive by pushing down and sliding it towards yourself.

  3. OrTqK1HLMXxa3Xvq

    • Slide the hard drive to left and remove it from the device.

  4. MDYvdjHgw6Hb2PFl

    • Unscrew the four 4mm screws using a Phillips #0 screwdriver.

  5. vxsWJOmmaEU6IwZx

    • Flip the computer right side up and start to lift the keyboard. The keyboard/back panel should come off.

    • Do not force the keyboard/back panel off. This could damage internal components and bend the keyboard.

  6. ibAQITfUIw4ClBZP
    ibAQITfUIw4ClBZP
    daSt4nIrhyN6PlHV

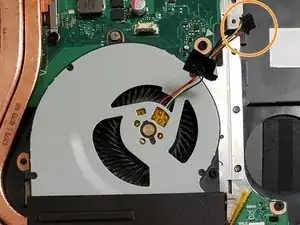

    • Unplug the red and yellow wires from the port in the motherboard.

    • Lightly pull on the red and yellow wires to release.

  7. oP5sPhhhYDFBeMuM

    • Remove the 5mm screw.

    • Remove the 4mm screw.

  8. P4CanJ6qPupsxQMq

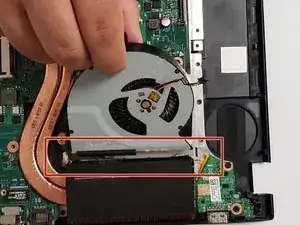

    • The fan is glued to the black box that it is inside of. When pulling the fan out, you may experience a small amount of tearing of the black box.

    • Gently pull the fan out of the black box.

Abschluss

To reassemble your device, follow these instructions in reverse order.
